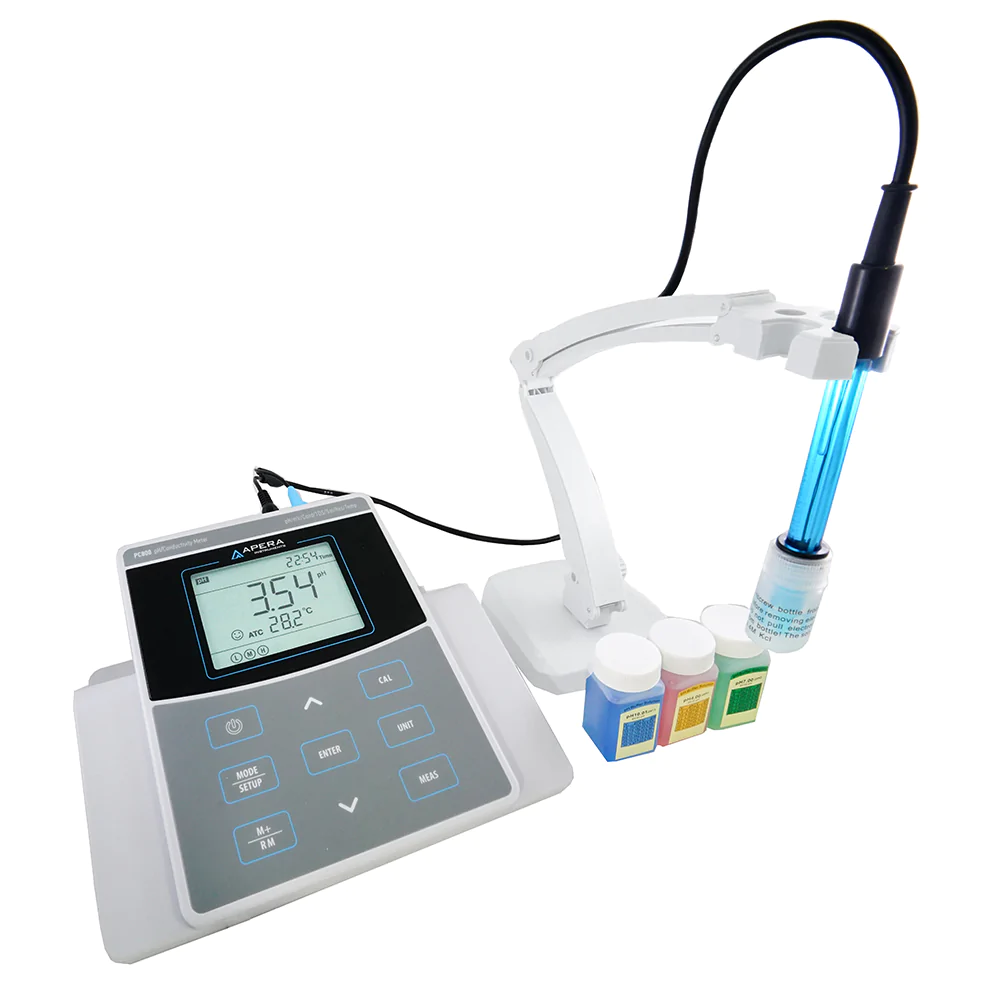

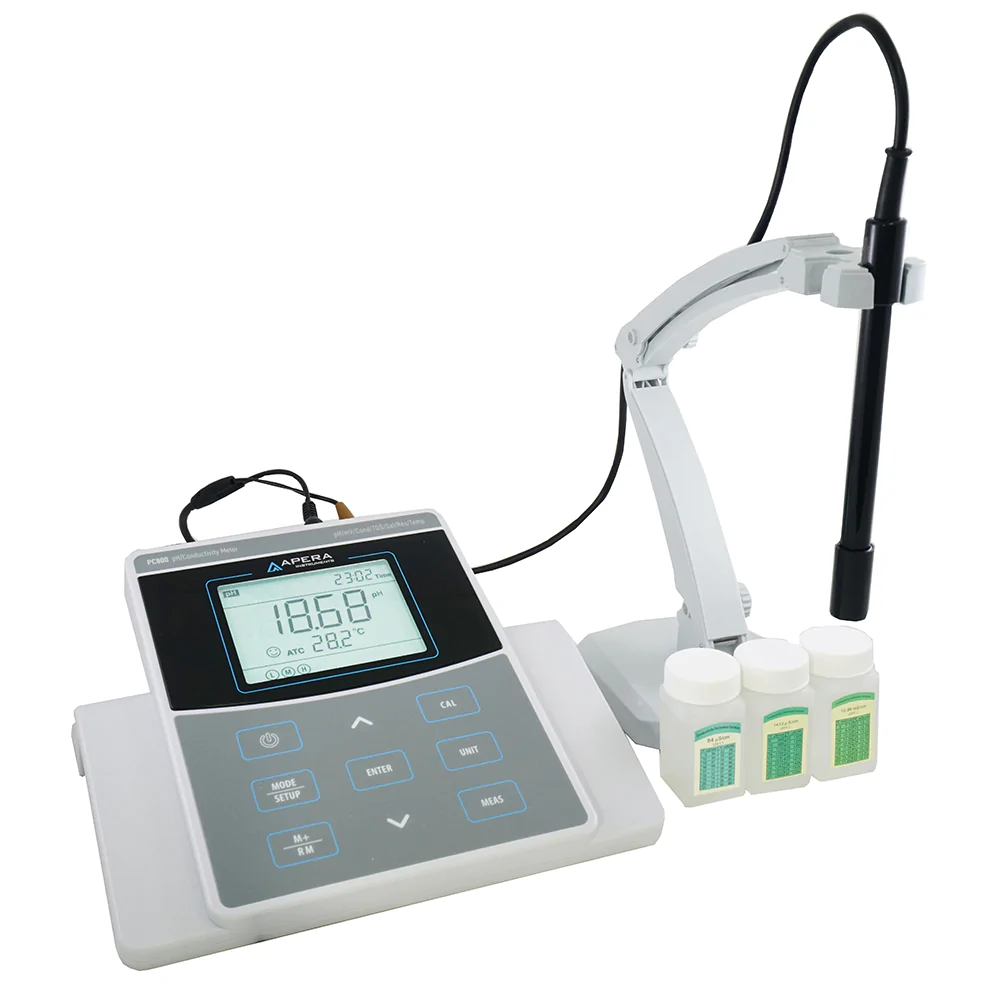

PC800 pH/Conductivity Laboratory Multi-Parameter Meter
Apera Instruments PC800 pH/Conductivity Laboratory Multi-Parameter Meter. IP54 (protection against dust and splashing water)-rated housing.
| Measuring Range | 0 to 100 °C; -2,00 to 19,99; Total: 0 to 200 mS/cm 0.00 to 19.99 μS/cm 20.0 to 199.9 μS/cm 200 to 1999 μS/cm 2.00 to 19.99 mS/cm 20.0 to 199.9 mS/cmTDS: 0 to 100 g/lSalinity: 0 to 100 pptResistivity: 0 to 100 MΩ*cm; ±1999 mV |
|---|---|
| Resolution | 0,1 °C; 0,1/0,01; 0.01 μS/cm; 0.1 μS/cm; 1 μS/cm; 0.01mS/cm; 0.1 mS/cm Accuracy ±1.0 % F.S. ± 1 digit; 1 mV |
| Accuracy | ±0.5 °C ± 1 digit; ±0.01 ± 1 digit; 0.1 % F.S. ± 1 digit |
| Calibration | Automatic 1 to 3 point calibration |
| Cell Constant | 0.1/1/10 cm¯¹ |
| Data output | USB, PC-Link software |

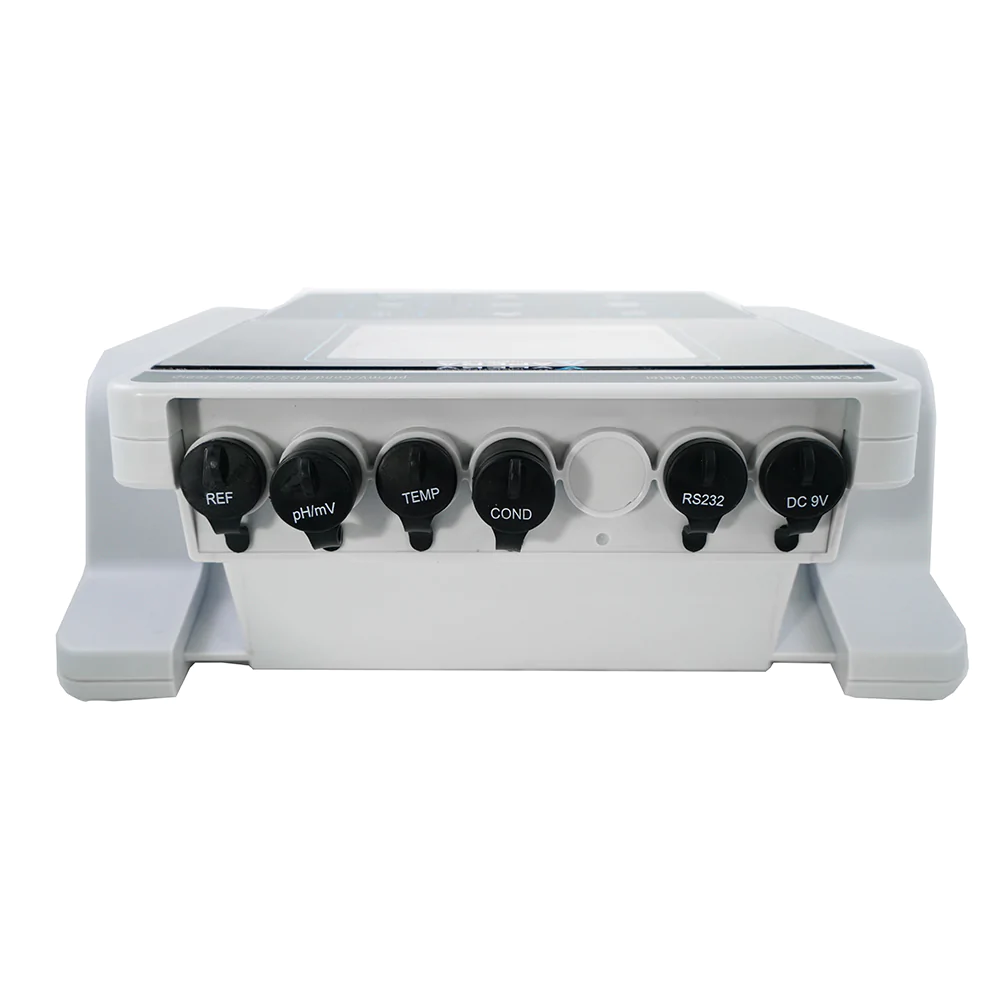

| Electrode connections | pH/conductivity: BNC; Temperature: Cinch |
| Input Current | ≤ 10-¹² A |
| Input Impedance | ≥ 10¹² Ω |
| Memory locations | 1000 groups |
| Memory Values | Numbering, date, time, measured value, unit, temperature |
| Power supply unit | DC 9 V/300 mA |
| Stability | ±0.01 ± 1 digit / 3 hours |
| Temperature Compensation | 0 to 100 ° C (automatic or manual); 0 to 50 °C (automatic or manual) |
| Dimensions | 240 × 235 × 103 mm (with cardboard 270 × 250 × 180 mm) |
| Weight | 1 kg (with carton 3.2 kg) |
| Housing Protection Class | IP54 (protection against dust and splashing water) |
| Manufacturer | Apera Instruments |
| MPN | 28APE190130 / AI523-EU |
| Item number | 28APE190130 / AI523-EU |
The Apera Instruments PC800 is a reliable and user-friendly benchtop multiparameter meter designed for precise pH and conductivity measurements in laboratory applications. It is ideal for research, education, environmental monitoring, and industrial quality control.

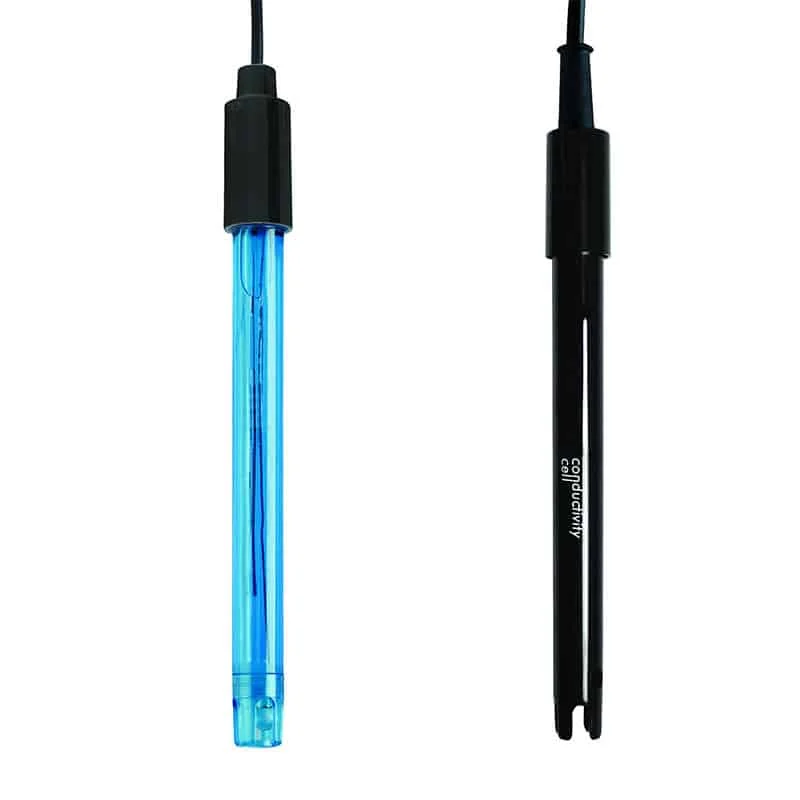

Equipped with the 201T-F 3-in-1 pH electrode (pH, temperature, reference) and the 2301T-F conductivity electrode with built-in temperature sensor, the PC800 provides automatic temperature compensation and accurate results across a wide measurement range.

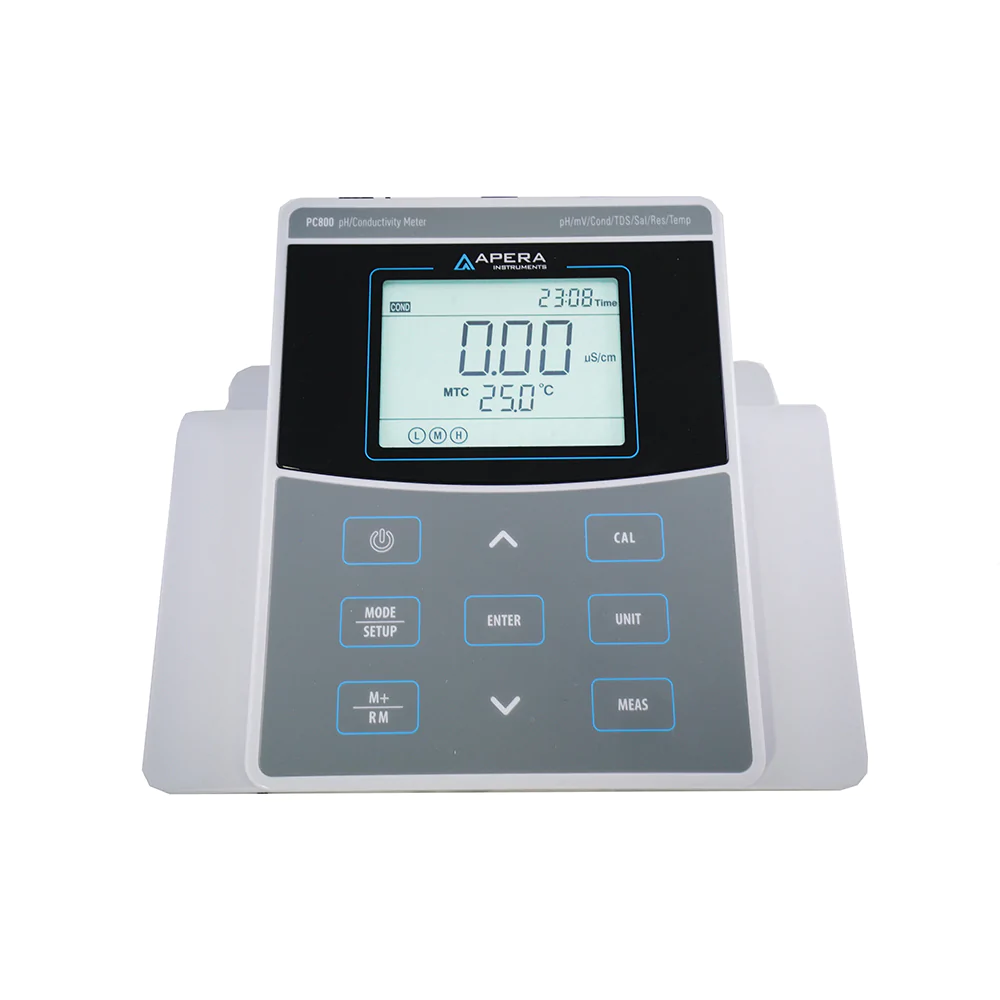

The intuitive interface includes a large, backlit LCD that simultaneously displays pH, conductivity, TDS, salinity, resistivity, and temperature along with real-time calibration and status indicators. Automatic multi-point calibration, GLP-compliant data management, and USB connectivity make the PC800 a professional solution for multi-parameter water testing.
Key Features
- Measures pH, conductivity, TDS, salinity, resistivity, and temperature
- High-accuracy 201T-F pH electrode and 2301T-F conductivity electrode included
- Automatic temperature compensation (ATC)
- 1 to 4-point calibration with auto buffer/standard recognition
- Calibration reminder and self-diagnosis functions
- Large backlit LCD with simultaneous display of all measured parameters
- GLP data logging with 1000 memory groups
- USB data output with included PC software
- Flexible electrode holder included
- 3-year warranty on meter; 6-month warranty on electrodes
