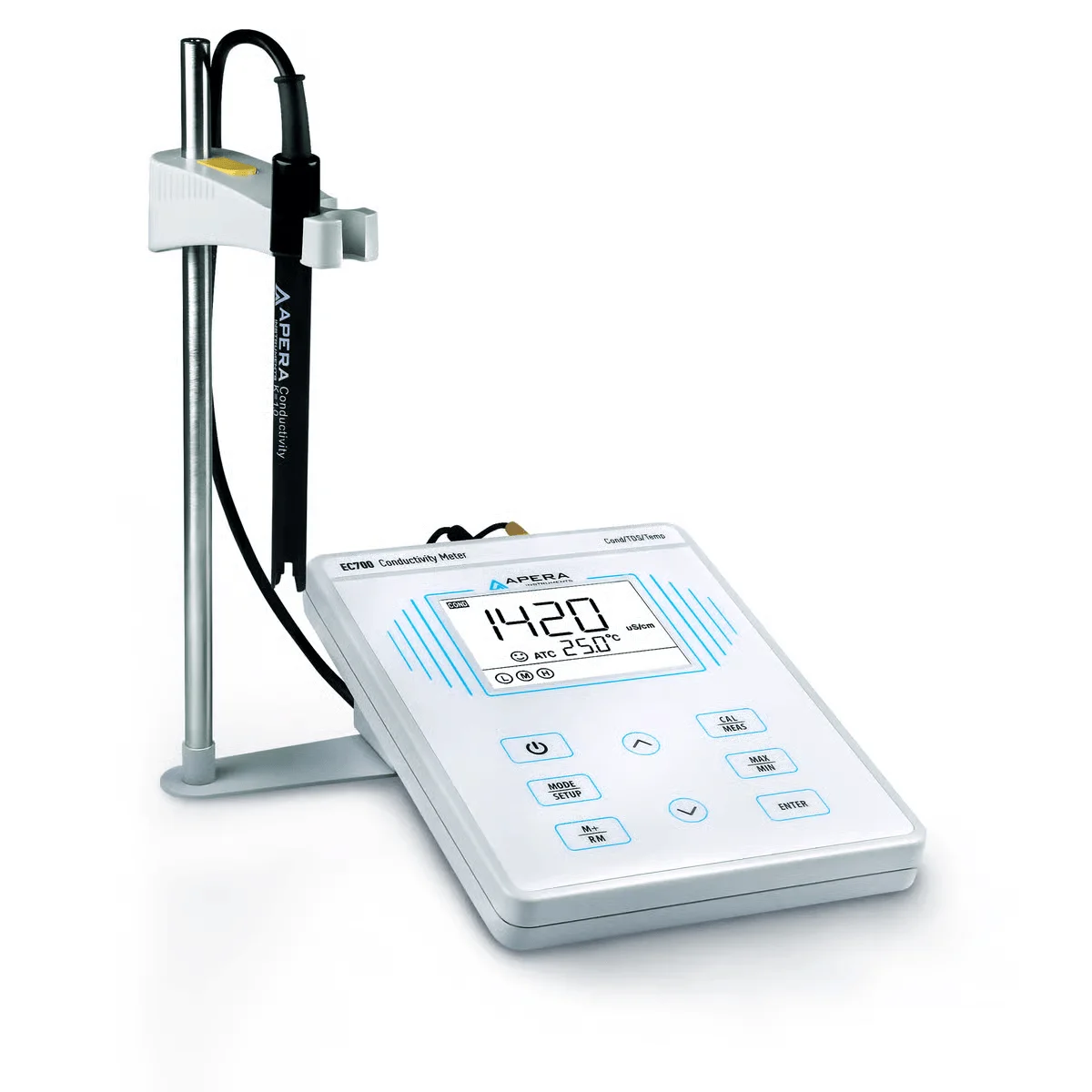

EC700 Benchtop Conductivity Meter Kit
Apera Instruments EC700 Benchtop Conductivity Meter Kit, measuring 0 to 80°C (32 to 212°F). Runs on Input: 120V AC 60Hz; Output: DC9V/300mA, 2.7VA.
| Measuring Range | 0 to 80°C (32 to 212°F); Conductivity: 0~200.0 mS/cm_include (0 to 199.9) μS/cm; (200 to 1999) μS/cm; (2.00 to 19.99) mS/cm_(20.0 to 199.9) mS/cm |
|---|---|
| Resolution | 0.1°C; 0.1/1?F; 0.1/1μS/cm_0.01/0.1 mS/cm |
| Accuracy | ±0.5°C±1 digit; ±1.0% F.S. |
| Base Temperature | 25°C (77°F) |
| Calibration | 1 to 4 points auto calibration |
| Data Storage | 50 sets |
| Dimensions & Weight | (9.5*9.3*4) inches / 2.2 pounds; With case: (12*10*5) inches / 3 pounds |
| Electrode Constant | 0.1 / 1 / 10 cm-1 |
| IP Rating | IP54 splash-proof and dust-proof |
| Storage Content | Numbering, measurements, unit, temperature, and status of temperature compensation |
| Temperature Coefficient | 0.00 to 9.99%/°C, default: 2.00%/°C |
| Temperature Compensation | 0 to 50°C (32 to 212°F) Auto or Manual |
| Power Supply | Input: 120V AC 60Hz; Output: DC9V/300mA, 2.7VA |
| Manufacturer | Apera Instruments |
| MPN | AI502 |
| Item number | AI502 |
The Apera Instruments EC700 is a reliable and cost-effective benchtop conductivity meter designed for basic laboratory and educational use. It features the high-performance 2301T-F combination conductivity electrode with Apera’s BPB (Brush-Resistant Platinum Black) technology, ensuring fast, accurate, and stable measurements across a wide range of conductivity values.
With advanced digital processing and auto temperature compensation, the EC700 delivers consistent readings in challenging environments. It includes a user-friendly auto calibration mode that recognizes eight standard conductivity solutions, making setup and calibration quick and efficient. The unit is IP54-rated for dust and splash resistance, ideal for both classroom and field lab use.
Key Features
Measures conductivity and temperature simultaneously with automatic temperature compensation
Includes 2301T-F conductivity electrode with BPB platinum black technology
Advanced digital processing ensures quick, stable, and accurate results
Auto calibration mode with calibration guide and self-diagnosis
Recognizes 8 standard conductivity calibration solutions automatically
IP54-rated spill-proof and dust-proof housing for long-lasting performance
50 groups of data memory with max/min measuring mode
Comes with an easy-to-install electrode holder and 3 pre-mixed calibration solutions

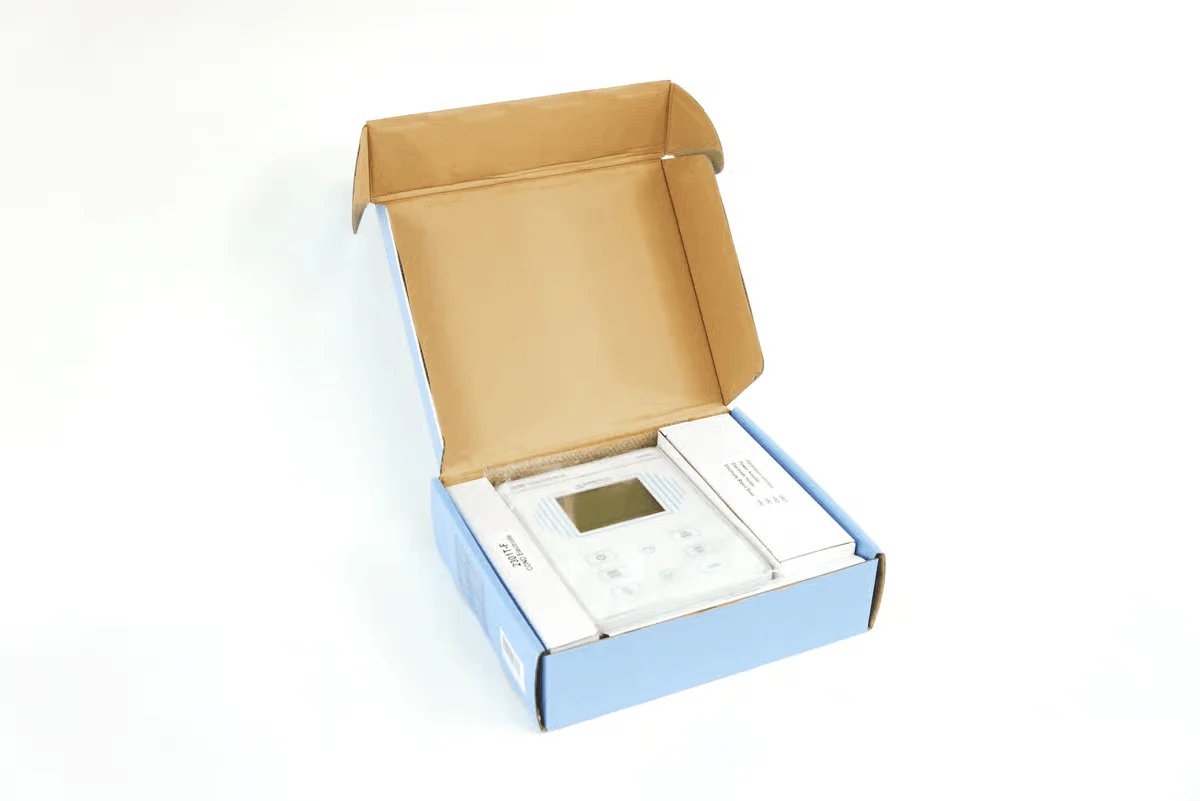

Complete Set Contains

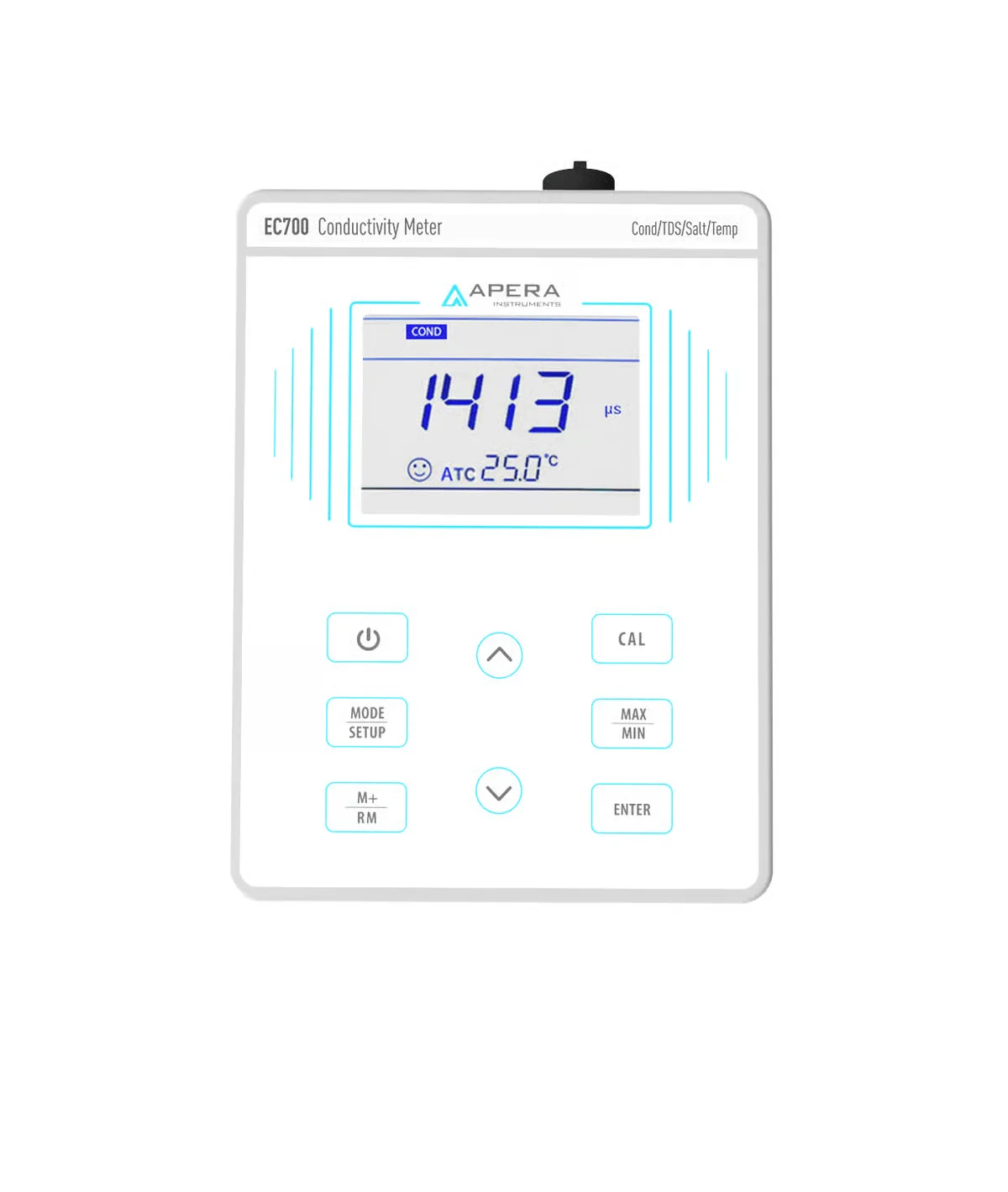

EC700 benchtop conductivity meter

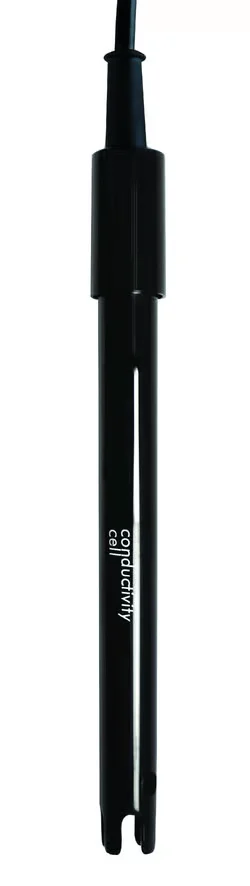

2301T-F combination conductivity electrode
Electrode holder
3 pre-mixed conductivity calibration solutions (84 µS/cm, 1413 µS/cm, 12.88 mS/cm)
Power adapter
User manual
Product documents
