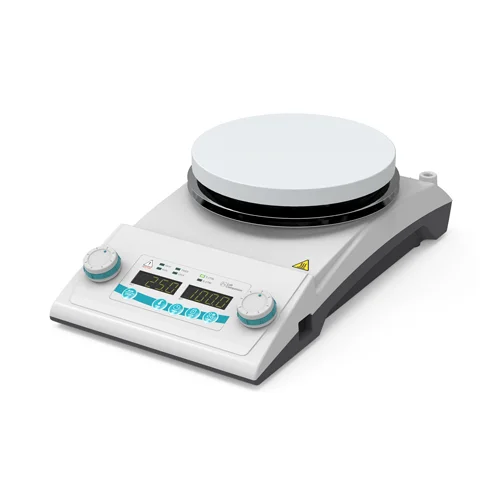

Jeio Tech T-18QG Hotplate
Jeio Tech T-18QG Hotplate for life-science, pharmaceutical and industrial laboratories.
| Body – Dimension (WxDxH) (mm / inch) | 209x326x102/ 8.22x12.83x4.0 |
|---|---|
| Body – Material | Aluminum |
| Body – Shape | Straight body |
| Electrical requirements (230V, 50/60Hz) | 4.0 A |
| Heating – Control | Feedback control with PID |
| Heating – Display | LED digital (0.1℃ resolution) |
| Heating – Heating power (W) | 800 |
| Heating – Temperature range (℃ / ℉) | Max. 350 / 662 |
| Load, Max. (kg / lbs) | 25 / 55.1 |
| Manufacturer Part Number | AAH35085K |
| Net weight (kg / lbs) | 3.8 / 8.37 |
| Safety – Hot top indicator (℃ / ℉) | Warning lamp (50 / 122) |
| Safety – Over current | Current limit protection |
| Safety – Over temp. | Top plate / Main body / PCB |
| Supplied As | 1 |
| Timer | 2 type, 1min. to 99 hr. 59 min. |
| Top plate – Dimension (Ø or WxD) (mm / inch) | 180x180/ 7.08x7.08 |
| Top plate – Material | Ceramic coated aluminum |
| Top plate – Shape | Square type |
| Manufacturer | JeioTech |
| MPN | AAH35085K |
| Item number | AAH35085K |
Jeio Tech's T-18QG Hotplate provides superior temperature control and comes with a variety of safety features (e.g. high and low temperature limit setting).
Jeio Tech's T-18QG Hotplate provides superior temperature control and comes with a variety of safety features (e.g. high and low temperature limit setting). With its integrated design, this scientific hotplate delivers an excellent heat transfer rate and quick heat-up capability. The selective heating level can be allocated from 0 to 100%, and the exact temperature is applied on the hotplate's digital display.
Features
- Superior temperature control with various safety functions and a ceramic coated, aluminium top plate. Performance & Convenience Microprocessor PID temperature control Auto-tuning and temperature calibration functions Multi-functional temperature control modes Integrated design of the heater and the top plate provides exceptional heat transfer rate and quick heat up capability Precise temperature is set by digital LED display Advanced dual wait on/off timer modes Separate operation RUN/STOP button Safety Built-in thermal shut off and current limit protection High and low temperature limiter Hot top warning indicator Keypad lock function Transparent safety shield (optional)
Supplied in the United Kingdom by Lancetech Limited. Lead time 2-3 weeks.
