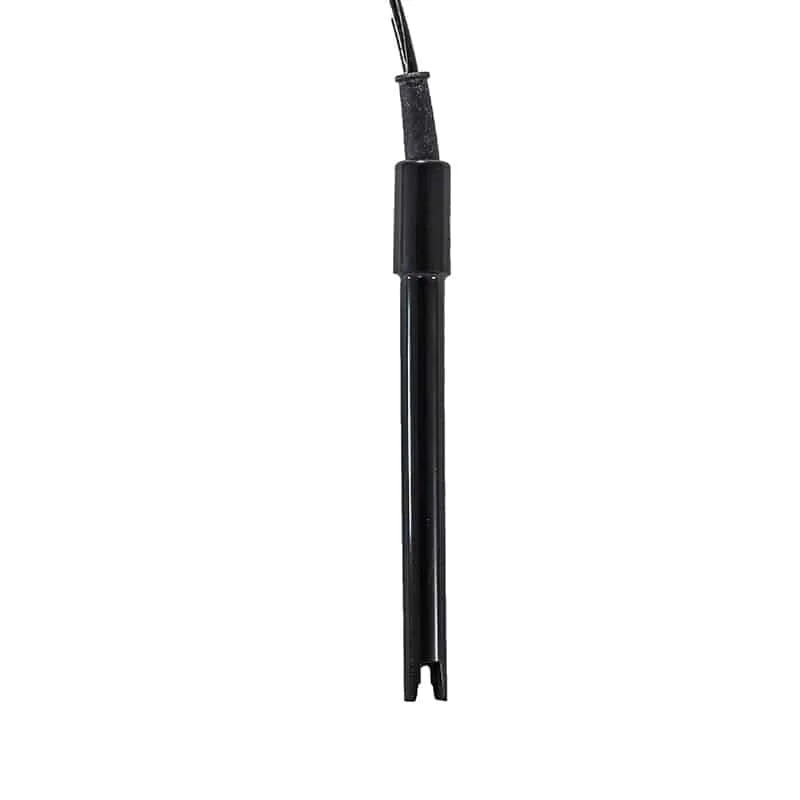

2301T-S Conductivity/Temp. Electrode, 8-pin
Apera Instruments 2301T-S Conductivity/Temp. Electrode, 8-pin, measuring 0 to 200 mS/cm, 0 to 50°C for Apera Instruments meters.
| Measuring Range | 0 to 200 mS/cm, 0 to 50°C |
|---|---|
| Cable | 1m |
| Cell Constant | K = 1,0 |
| Electrode Dimension | (Ø12×155) mm |
| Recommended Operating Temperature | (0 ~ 80)°C |
| Shank material | POM |
| Temperature Sensor | 30KΩ thermistor |
| Connection | 8 Pin |
| Manufacturer | Apera Instruments |
| MPN | AI1313 |
| Item number | AI1313 |

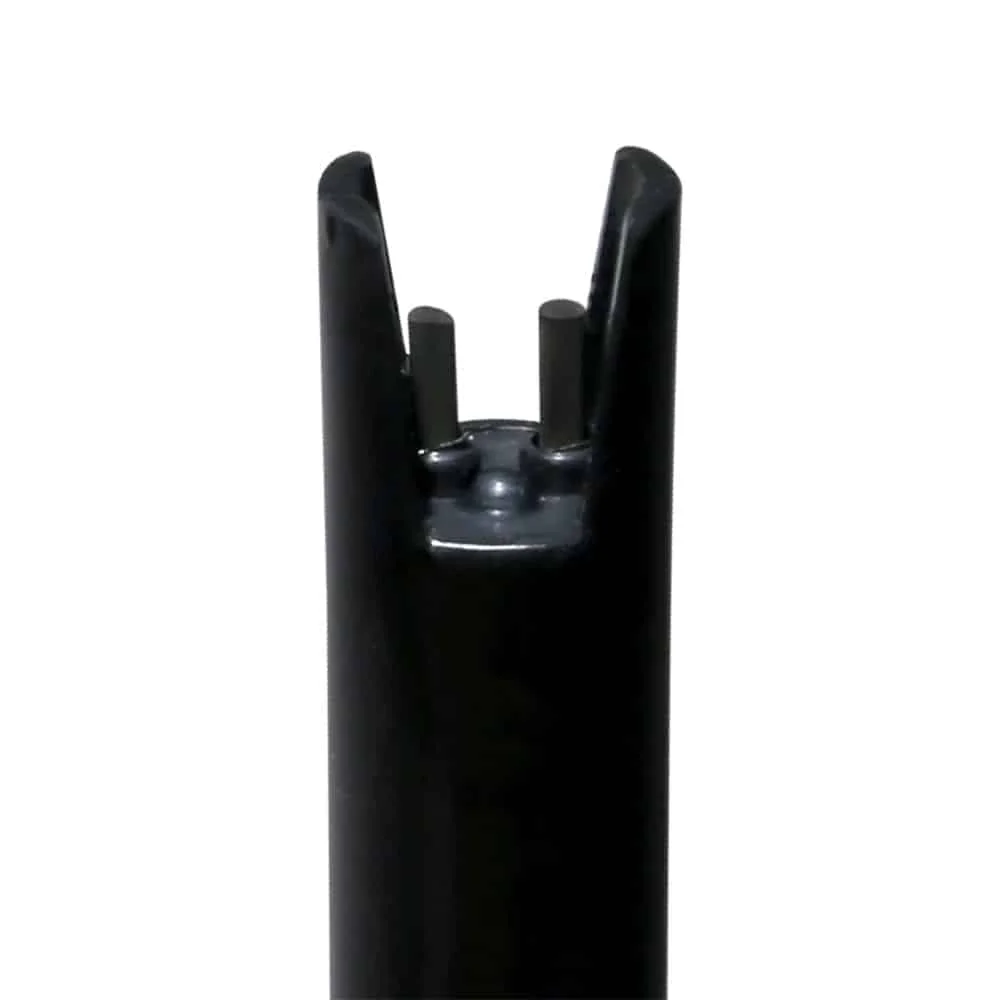

The Apera Instruments 2301T-S is a premium conductivity and temperature electrode featuring BPB (Brush-resistant Platinum Black) technology. Designed for wide-range conductivity measurements with high precision, it minimizes polarization and offers unmatched stability and durability.
Ideal for laboratory, environmental, and industrial applications, this electrode includes an integrated temperature sensor for automatic temperature compensation (ATC) and a removable cap to prevent sensor drying.
Key Features
- BPB Technology – Brush-resistant platinum black coating reduces polarization and enhances longevity
- Wide Measurement Range – Delivers consistent, accurate results across a broad conductivity range
- Integrated Temperature Sensor – Enables ATC for more precise readings
- Brush-Cleanable Electrode – Unique design allows gentle cleaning without damage
- Protective Storage Cap – Prevents electrode drying for better performance and lifespan
- 6-Month Manufacturer’s Warranty – Backed by Apera Instruments
- Compatible with Multiple Apera Meters – Including EC850, PC850, EC8500, PC8500, EC400, PC400, EC400S, PC400S
Compatibility
EC400 / PC400
EC400S / PC400S
EC850 / PC850
EC8500 / PC8500
