PH8500-HT pH Meter for High Temperature and Caustic Solutions with GLP Memory Function and Data Output
Apera Instruments PH8500-HT pH Meter for High Temperature and Caustic Solutions with GLP Memory Function and Data Output. Runs on 3 × AA batteries / DC 5V (USB port).
| Measuring Range | 0 to 100 °C; -2.00 to 16.00 pH; ±2000 mV |
|---|---|
| Resolution | 0,1 °C; 0.1/0.01 pH; 0.1/1 mV |
| Accuracy | ±0.5 °C ±1 digit; 0 to 100 ° C (automatic or manual); ±0.1% F.S ±1 digit |
| Data Content | Numbering, date, time, Measured value, unit, temperature |
| Dimensions & Weight | 88x170x33 mm / 313g with case: 360x270x76 mm / 1.3 kg |
| Electrode connections | BNC (pH/ ORP), 8-pin (conductivity), RCA (temperature) |
| IP Rating | IP57 |
| Memory Space | 500 sets |
| Temperature Compensation | 1 to 3 points, automatic |
| Power Supply | 3 x AA batteries / DC 5V (USB port) |
| Interface | USB |
| Manufacturer | Apera Instruments |
| MPN | AI5566 |
| Item number | AI5566 |

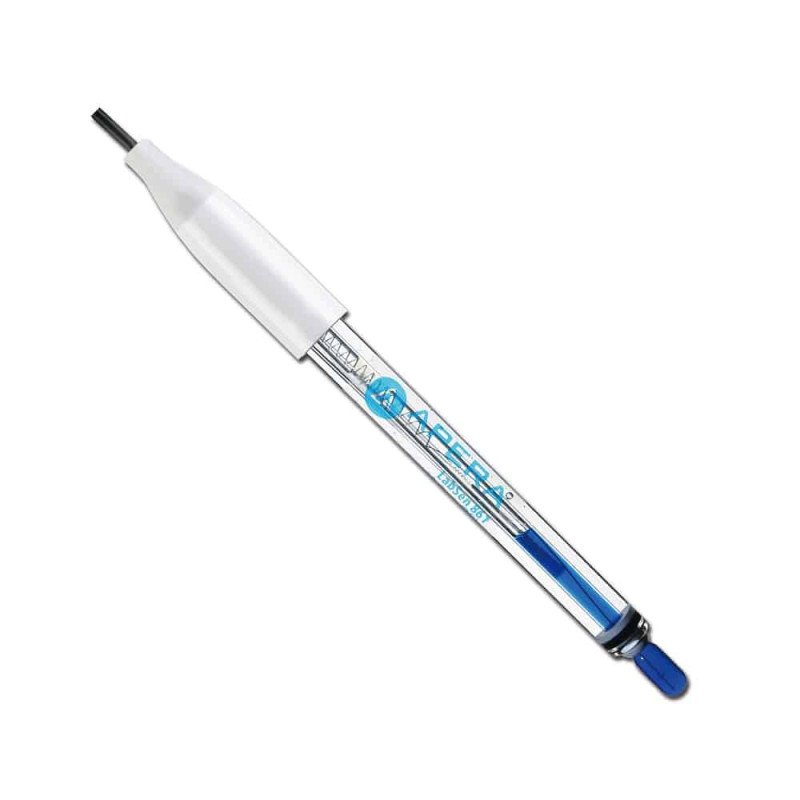

The Apera Instruments PH8500-HT is a rugged and professional-grade pH meter designed for reliable pH measurements in high-temperature and chemically aggressive solutions. Equipped with the LabSen® 861 pH electrode featuring a special PSY glass membrane, this meter delivers exceptional chemical resistance and long service life when testing caustic or high-temperature liquids (up to 130°C). The MP500 external temperature sensor ensures accurate Automatic Temperature Compensation (ATC) under all testing conditions.

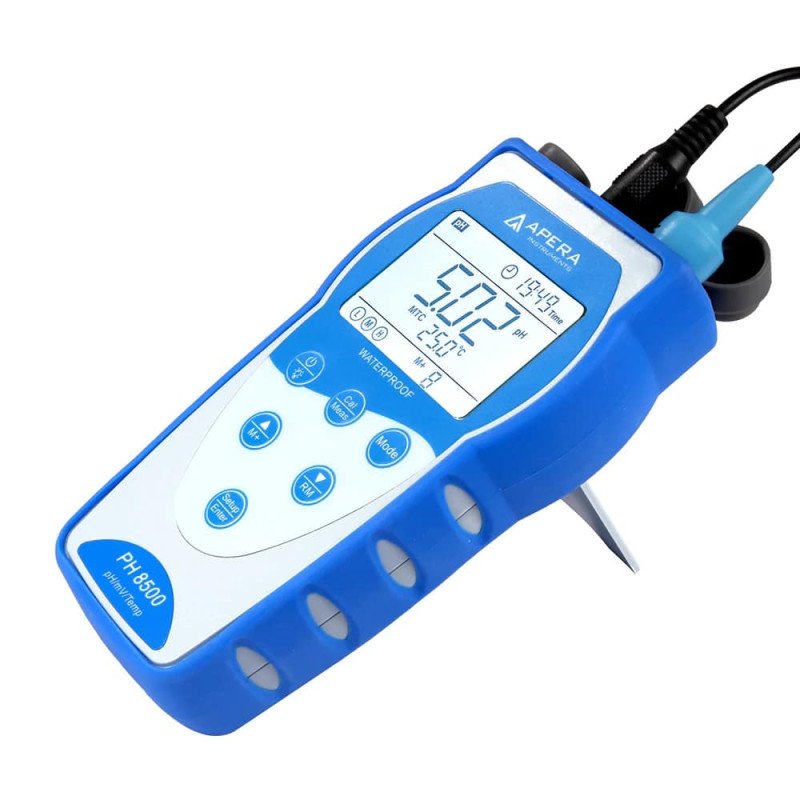

Ideal for use in demanding field or lab environments, the PH8500-HT is built with IP57-rated water and dust protection, a shock-absorbing silicone cover, and a fold-out stand for tabletop use. Its GLP-compliant data management system stores up to 500 memory groups and enables real-time or stored data transfer via USB.
Key Features
- Includes LabSen® 861 pH electrode for high-temperature and chemically aggressive solutions
- Highly resistant PSY glass membrane ensures long electrode life and stable readings
- MP500 temperature sensor enables precise automatic temperature compensation
- Handles solutions up to 130°C (266°F) for industrial or high-temp applications
- Shock-resistant silicone cover provides protection and grip in rugged use
- Waterproof and dustproof (IP57) design for outdoor and field reliability
- Fold-out stand enables convenient bench-top operation
- Quick 1- to 3-point calibration for accurate results
- Large, backlit LCD shows pH, temperature, and calibration information at a glance
- Stores up to 500 memory groups with GLP-compliant data management
- USB output for PC connectivity and real-time or saved data logging
- Self-diagnosis feature aids in calibration and error detection
- RoHS and EC certified for compliance and safety
- 3-year warranty on the meter (6 months on the electrode)
