PH820 Precision Benchtop pH Meter Kit
Apera Instruments PH820 Precision Benchtop pH Meter Kit. IP54-rated housing.
| Measuring Range | -10 to 110 °C; ±1999.9 mV |
|---|---|
| Resolution | 0.1 °C; 0,1/0,01/0,001; 0.1 mV |
| Accuracy | ±0.4 °C ± 1 digit; ±0.002 ± 1 digit; 0.03 % F.S. ± 1 digit |
| Calibration | Automatic 1 to 5 point calibration |
| Data output | USB |
| Electrode connections | BNC |
| Input Current | ≤ 1 x 10-¹² A |
| Input Impedance | ≥ 3 × 10¹² Ω |
| Memory locations | 500 groups |
| Memory Values | Numbering, date, time, measured value, unit, temperature |
| Power supply unit | DC 9 V/300 mA |
| Temperature Compensation | 0 to 100 ° C (automatic or manual) |
| Dimensions | 203.2 × 241.3 × 101.6 mm (with packing 270 × 250 × 180 mm) |
| Weight | 1 kg (with packing 3.2 kg) |
| Housing Protection Class | IP54 |
| Connection | Cinch |
| Manufacturer | Apera Instruments |
| MPN | 28APE190132 / AI531 |
| Item number | 28APE190132 / AI531 |

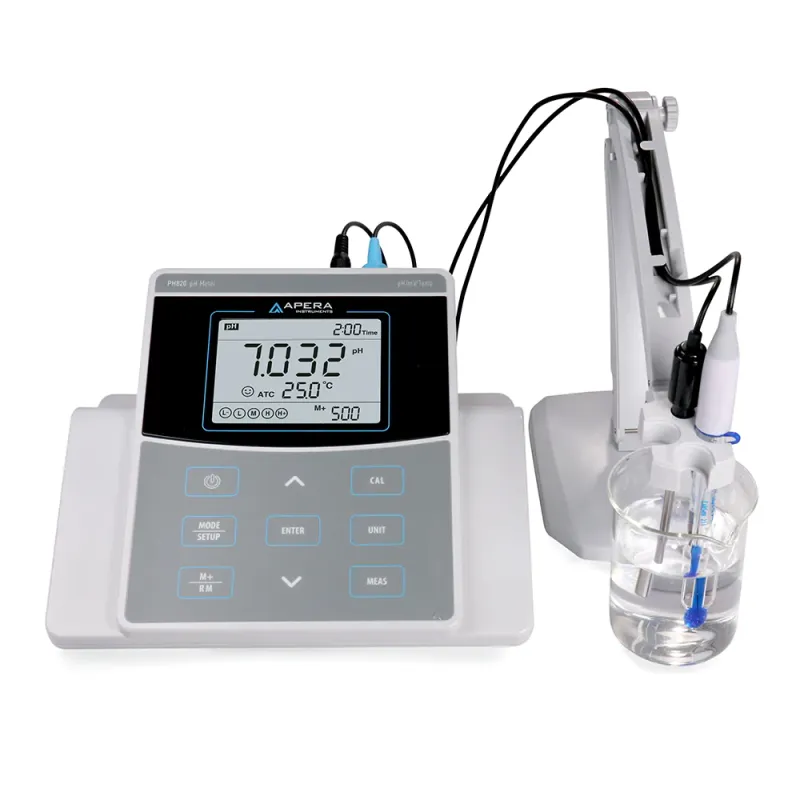

The Apera Instruments PH820 is a high-precision benchtop pH meter designed for laboratory professionals who require accurate and reliable pH measurements. Equipped with the Swiss LabSen 211 Combination pH Electrode and MP500 temperature sensor, this meter delivers superior accuracy of ±0.002 pH with advanced functionality and ease of use.
It supports 1 to 5-point automatic calibration with buffer recognition, slope diagnostics, and calibration reminders. The PH820 features a large, backlit LCD that displays pH and temperature readings along with calibration status, stability indicators, and intelligent prompts. Built with a durable IP54 water-resistant housing, this meter is suitable for a wide range of laboratory and quality control environments.
Key Features
- High measurement accuracy: ±0.002 pH ±1 digit

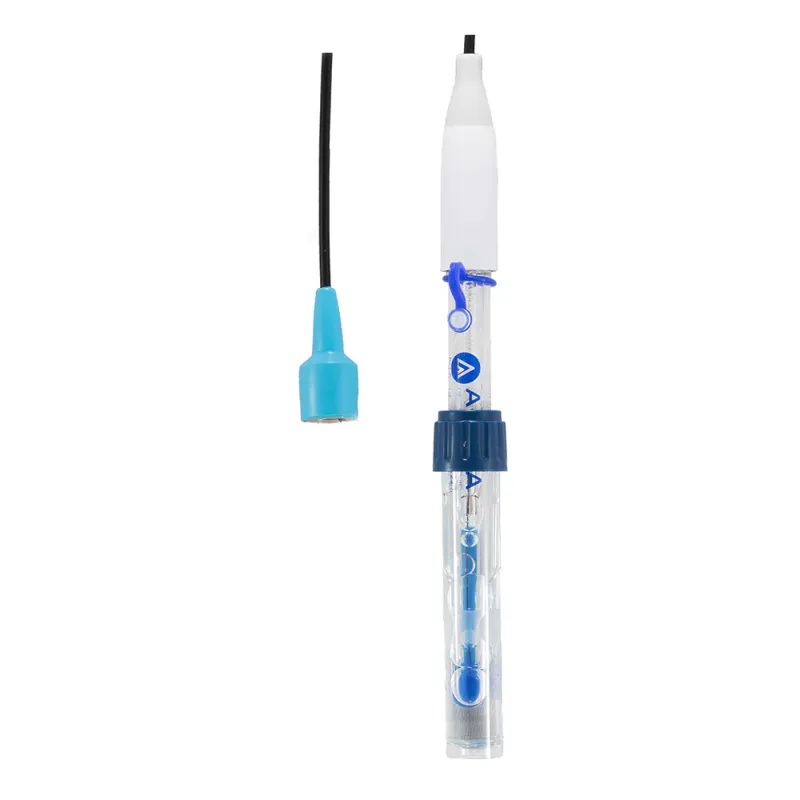

- LabSen 211 Swiss pH electrode ensures stable and accurate readings
- MP500 temperature sensor supports automatic temperature compensation
- 1 to 5-point auto calibration with automatic buffer detection
- Slope display monitors electrode performance
- Large backlit LCD shows pH, temperature, and calibration info
- GLP data management with 500 memory groups

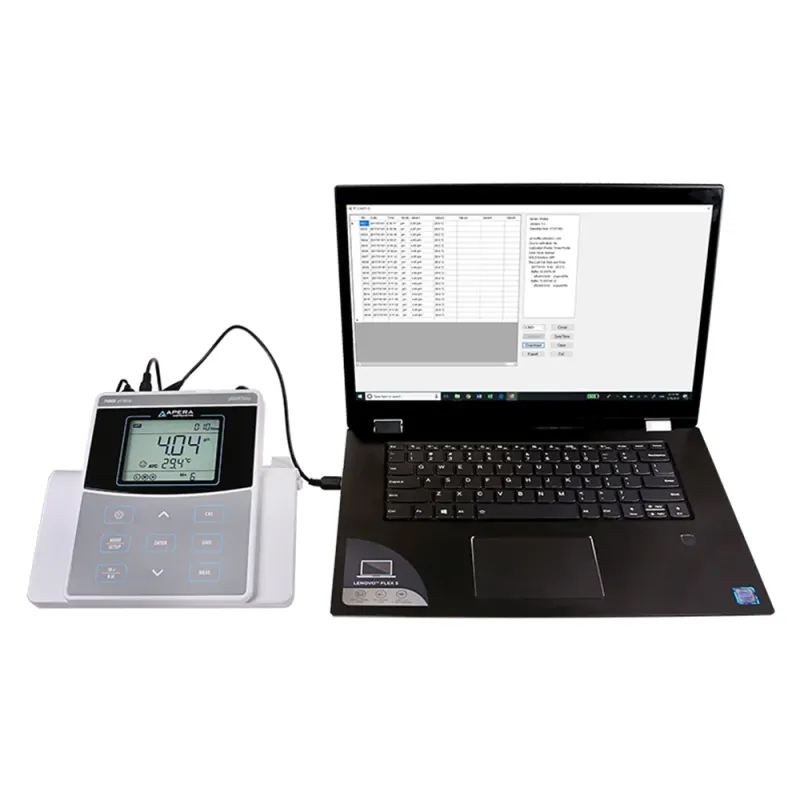

- USB data output with PC software support
- ORP (Redox) mode available with optional ORP electrode
- Self-diagnosis and calibration reminders
- IP54 water-resistant design for lab durability
- 3-year warranty for the meter, 6-month for the electrode
