LabSen 865 Non-refillable pH/Temp. Electrode for High Temperature and/or Caustic Water Solutions
·
Apera Instruments LabSen 865 Non-refillable pH/Temp. Electrode for High Temperature and/or Caustic Water Solutions for Apera Instruments meters.
| Cable | 3 Ft |
|---|---|
| Connector | 8-pin |
| Electrolyte | Gel KCL |
| Junction | PTFE |
| Membrane Impedance | <500MΩ |
| Membrane Type | Cylindrical |
| pH Range | 0-13 pH |
| Reference | Silver Ion Trap |
| Temp. Range | 0 to 130°C |
| Temp. sensor | 30KΩ NTC |
| Length | 120 mm |
| Diameter | 12 mm |
| Housing Material | Lead-free glass |
| Manufacturer | Apera Instruments |
| MPN | AI3241 |
| Item number | AI3241 |

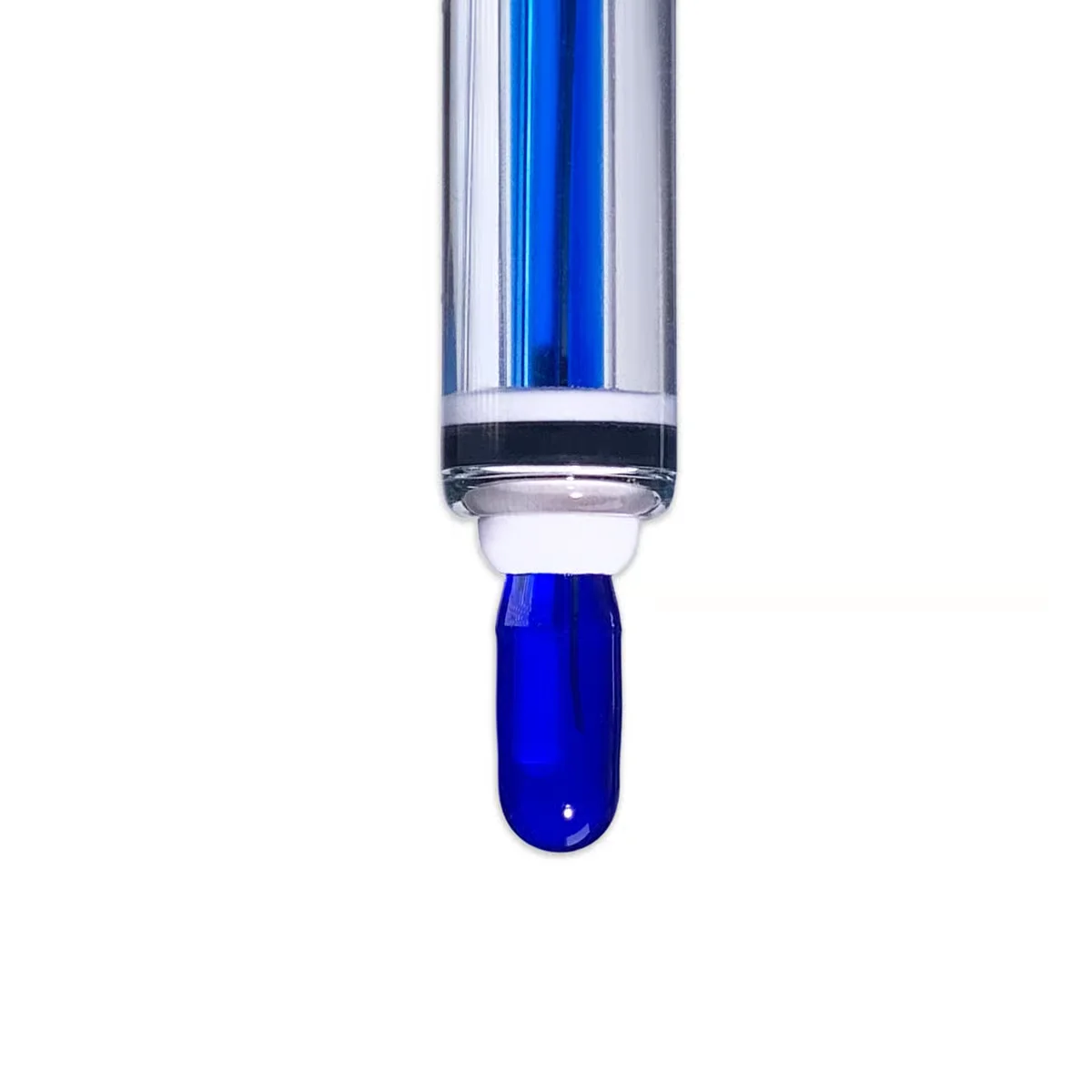

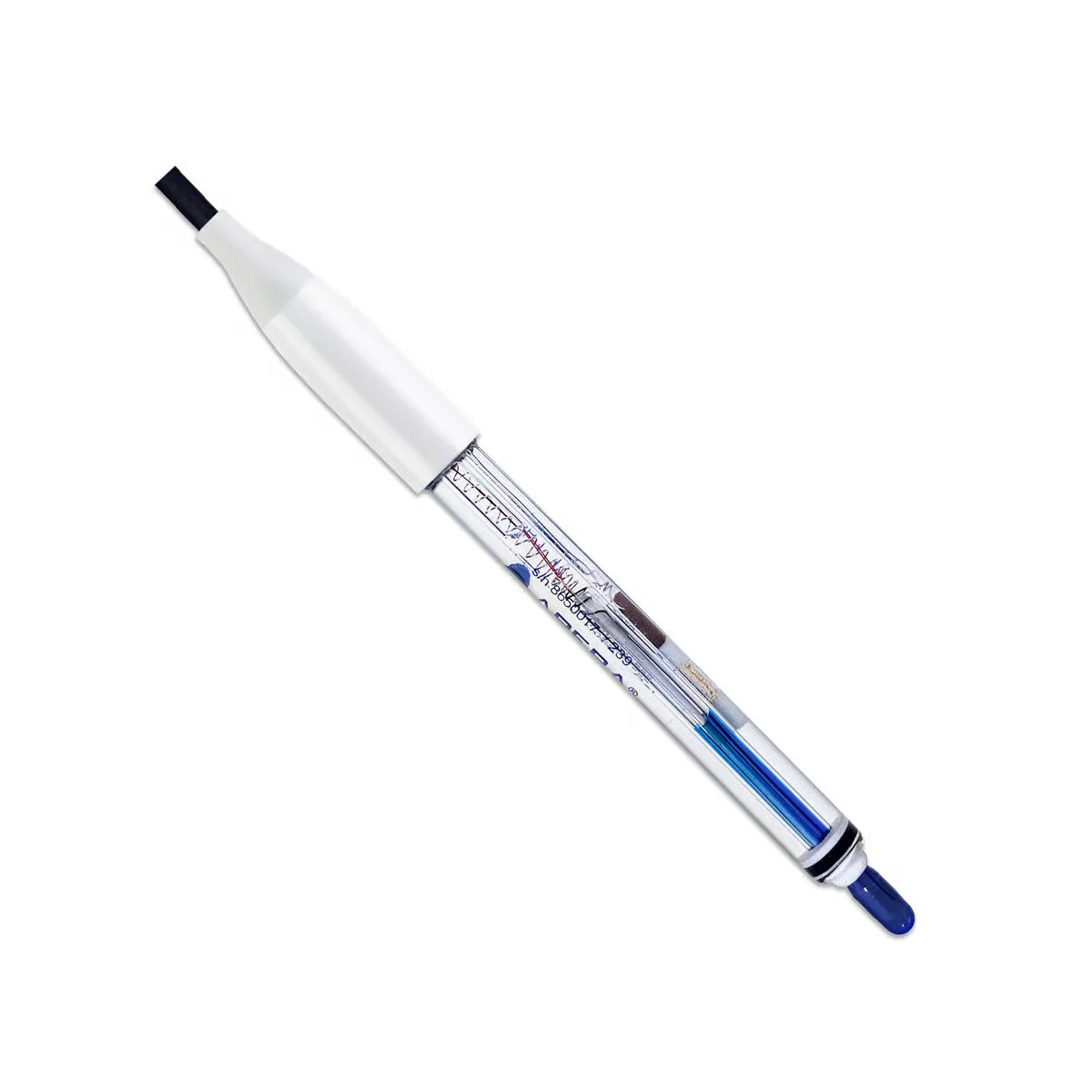

The LabSen 865 Glass pH/Temperature Electrode by Apera Instruments is specifically engineered for high-accuracy pH measurements in high-temperature and caustic water solutions, including electroplating baths. Built with Swiss sensor technology and robust materials, it delivers reliable, clog-free performance even in challenging chemical environments.
Key Features
- Designed for high-temperature and caustic liquid pH measurement such as electroplating solutions
- PHY membrane and PTFE junction prevent clogging and withstand harsh chemical exposure
- Silver Ion Trap reference system ensures long-term stability and extended lifespan
- 10x stronger sturdy glass membrane compared to standard pH electrodes
- Integrated temperature sensor enables automatic temperature compensation
- Compatible with Apera 8-pin meters: PH60, PH60-Z, PH400, PC400, PH400S, PC400S, SX751, SX736
Complete Set Contents
- 1 x LabSen 865 pH/Temp. Electrode
- User instructions
