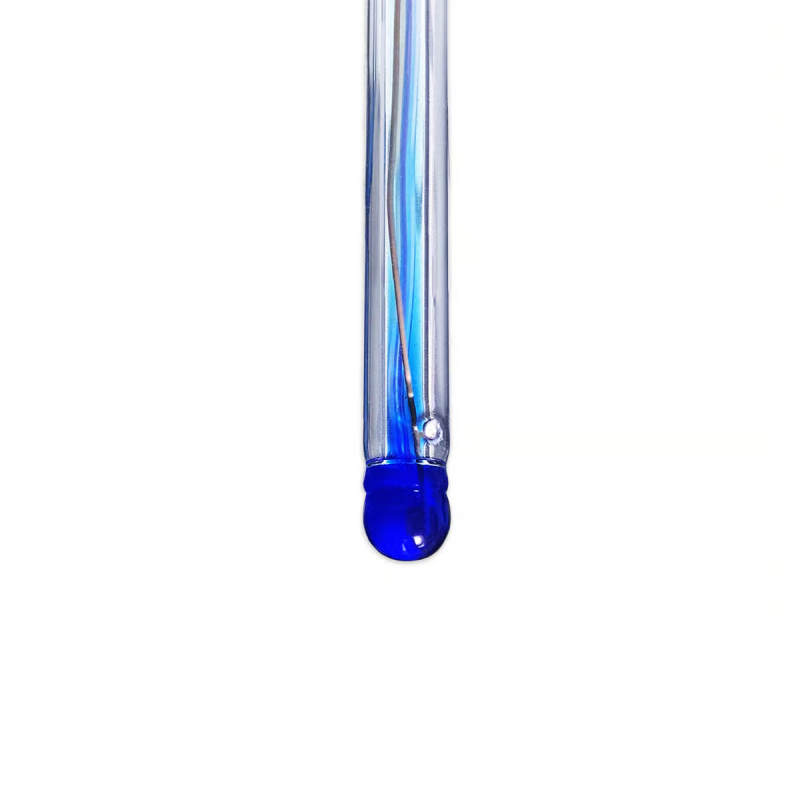

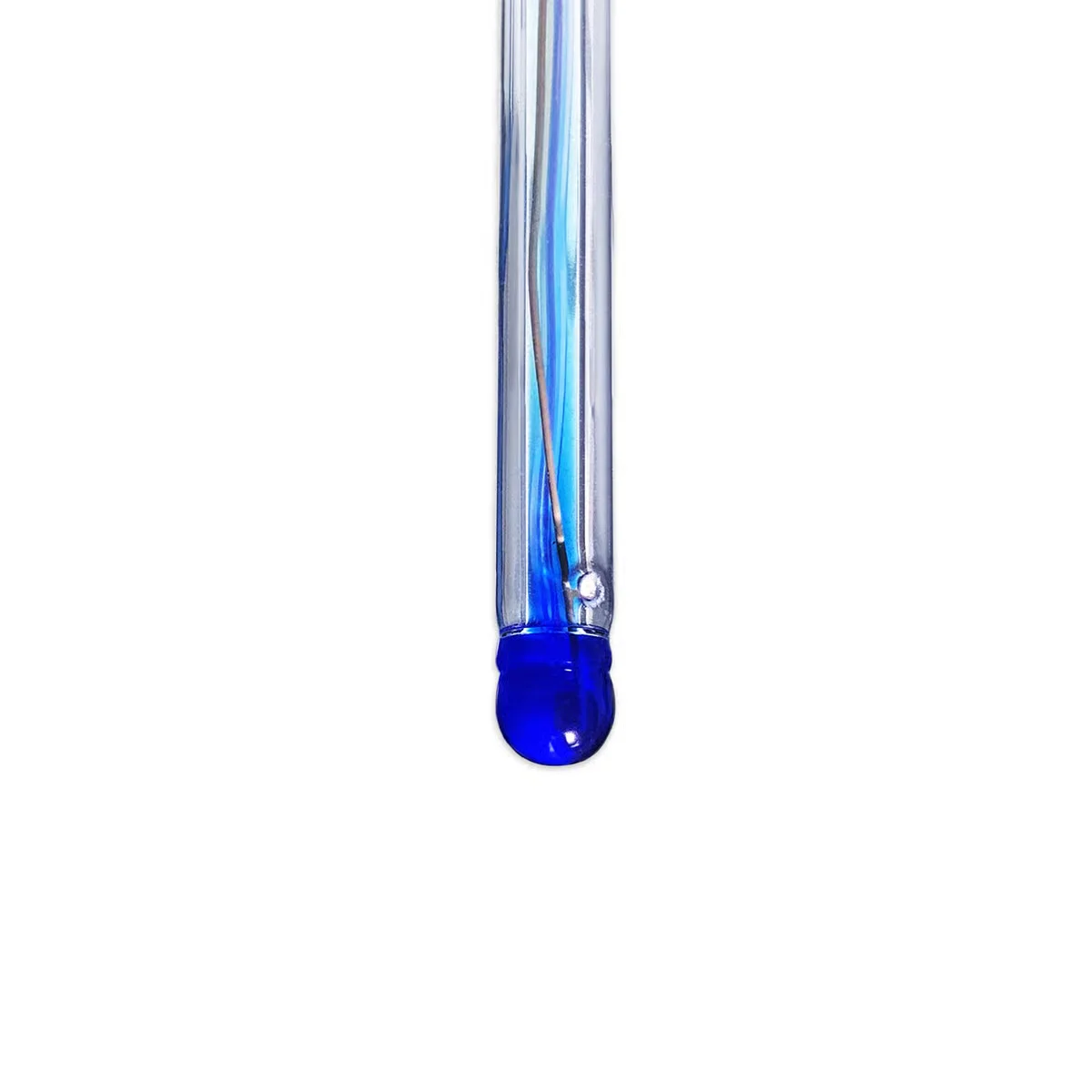

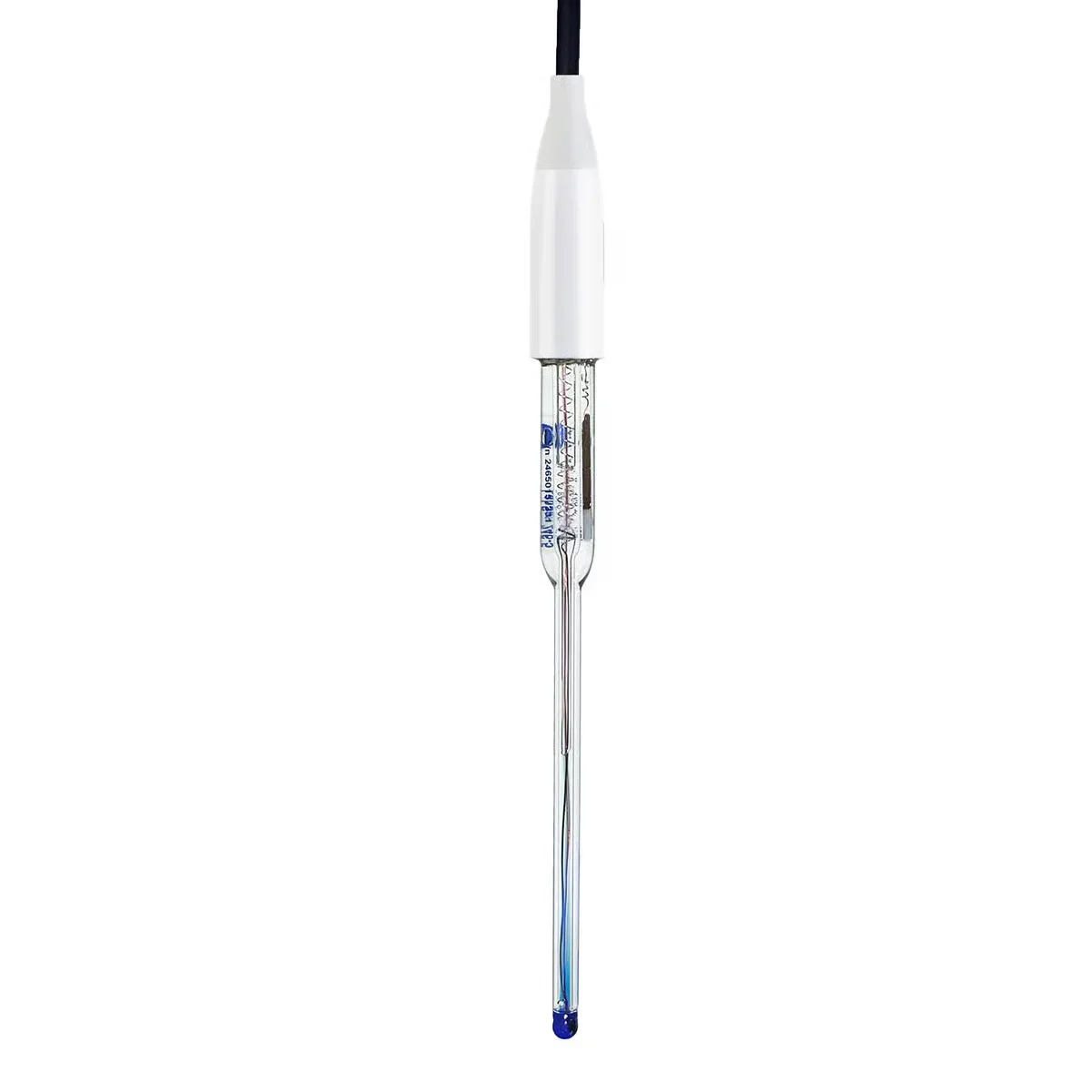

LabSen 246-5 Non-Refillable Semi-Micro pH/Temp. Electrode
·
Apera Instruments LabSen 246-5 Non-Refillable Semi-Micro pH/Temp. Electrode for Apera Instruments meters.
| Cable | 3 Ft |
|---|---|
| Connector | 8-pin |
| Electrolyte | Gel KCl |
| Junction | Ceramic |
| Membrane Impedance | <350MΩ |
| Membrane Shape | Hemispherical |
| Membrane Type | S |
| Range | 0-14 pH |
| Reference system | Long-Life |
| Temp. Range | 0 to 100°C |
| Temp. sensor | 30KΩ NTC |
| Length | 120 mm |
| Diameter | 12 mm |
| Housing Material | Lead-free glass |
| Manufacturer | Apera Instruments |
| MPN | AI3235 |
| Item number | AI3235 |
The LabSen 246-5 pH/Temperature Electrode from Apera Instruments is engineered with Swiss precision for accurate pH measurement in small-volume general water solution samples. Its semi-micro sensor tip enables precise readings with as little as 60µL of sample volume, making it ideal for micro analysis applications.
Key Features
- Semi-micro ø6mm sensor tip measures sample volumes as low as 60µL
- Ideal for general water solution pH testing in micro volumes
- Long-Life Reference System ensures stable readings and extends electrode lifespan
- Sturdy glass membrane is 10 times stronger than standard designs
- Built-in temperature sensor enables automatic temperature compensation
- Compatible with all Apera 8-pin pH meters including PH60, PH60-Z, PH400, PC400, PH400S, PC400S, SX751, SX736
Complete Set Contents
- 1 x LabSen 246-5 pH/Temp. Electrode
- 1 x Semi-micro container
- User instructions
