Macherey-Nagel
Spectrophotometer NANOCOLOR Advance
·

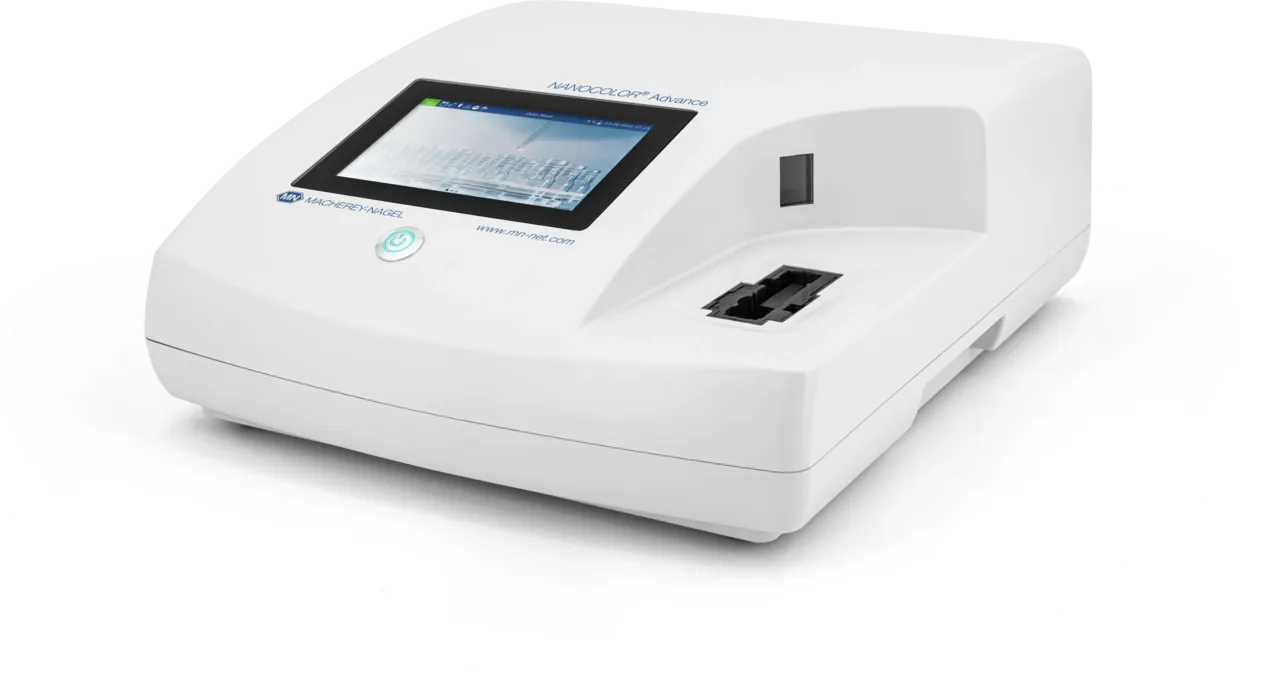

Spectrophotometer NANOCOLOR Advance, from Macherey-Nagel.
| CE certified | Yes |
|---|---|
| Cuvette slot | Tube test 16 mm, 24 mm OD; Standard test 10 mm, 20 mm, 40 mm and 50 mm |
| Data memory | 1000 measurement results, 1000 IQC results, 100 scans; GLP‑conform |
| Dimensions (L x W x H) | 325 x 280 x 130 mm |
| External light | Insensitive to external light, fast measurements without cuvette slot cover |
| Interfaces | LAN (CAT 6, only use shielded cables with a maximum length of 20 m) 2 x USB (Host), 1 x USB (Function) |
| Light Source | Halogen lamp |
| Measuring Modes | More than 200 pre-programmed tests and special methods; 99 fully programmable methods; absorbance; transmission; factor; kinetics; scan; nephelometric turbidity measurement |
| Operating range | 10–40 °C (50–104 °F), max. 80 % relative humidity (non-condensing) |
| Operation | Barcode technology, icon-based menu guidance, touch screen |
| Optical system | Monochromator |
| Photometric accuracy | 0.003 E at 0.0–0.5 E; 1% at 0.5–2.0 E |
| Photometric linearity | < 0.5 % at 0.5–2.0 E, ≤ 1% at > 2 E with neutral glass filters at 546 nm |
| Photometric range | +/- 3.0 E in the range 340–800 nm |
| Preprogrammed tests | NANOCOLOR tube tests and standard tests, VISOCOLOR ECO test kits and Powder Pillows |
| Scan speed | 1 complete scan in less than 3 min |
| Spectral bandwidth | < 4 nm |
| Stray Light | < 0.5 % |
| Turbidity measurement | Nephelometric turbidity measurement (based on ISO 7027, 16 mm and 24 mm) 1–1000 NTU |
| Type | Spectrophotometer with reference detector technology (RDT) |
| Update | Free via USB stick |
| Warranty | 2 Year(s) |
| Wavelength | 340 nm–800 nm |
| Wavelength accuracy | ± 2 nm |
| Wavelength calibration | Automatic |
| Wavelength reproducibility | ± 0.1 nm |
| Wavelength resolution | 1 nm |
| Wavelength selection | Automatic, Barcode, Manual |
| Weight | 3.8 kg |
| Display | Backlit colored 5" display with touch screen |
| Power Supply | Input 110–240 V AC, Output 12 V 3A DC; 6,4 V, 7,2 Ah via built-in battery |
| Product Line | NANOCOLOR |
| Manufacturer | Macherey-Nagel |
| MPN | 919750 |
| Item number | 919750 |
| Hazardous material | No |
| Gross weight (incl. packaging) | 5100 g / 11.24 lbs |
| Packaging dimensions | 400 x 370 x 190 mm / 15.75 x 14.57 x 7.48 Inch |
| Scope of delivery | Photometer, manual (quick start guide), touch pen, protective covering, power cable, USB cable, USB stick, calibration cuvette, certificate and cleaning cloth |
Spectrophotometer NANOCOLOR Advance incl. manual (quick start guide), protective covering, touchpen, power cable with country specific adapters, USB-stick, calibration cuvette, 24 mm test tube (4 pieces), certificate and cleaning cloth in cardboard box __UN 3481 Lithium ion batteries contained in equipment Only mark 7.1.C 9 - 0.412 Kg ADR/GGVSEB M4 0 E0 (E) SP188
