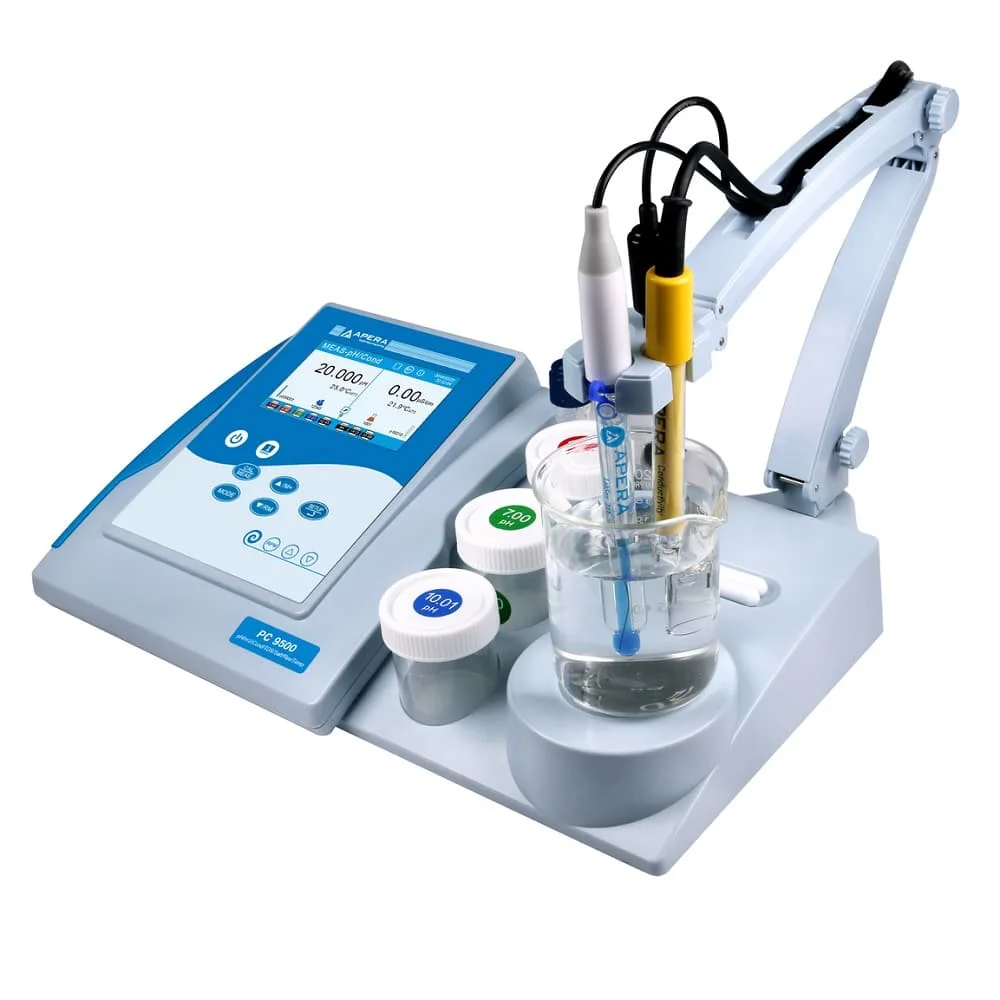

PC9500 Laboratory pH/Conductivity Benchtop Meter
Apera Instruments PC9500 Laboratory pH/Conductivity Benchtop Meter. IP54 (protection against dust and splashing water)-rated housing.
| Measuring Range | -10 to 110.0 °C; -2,000 to 20,000; ±2000 mV; EC: 0 to 2000 mS/cm TDS: 0 to 500 g/l Salinity: 0 to 100 ppt Resistivity: 0 to 20 MΩcm |
|---|---|
| Resolution | 0.1 °C; 0,1/0,01/0,001; 0.1/1 mV; 0.01/0.1/1 μS/cm; 0.01/0.1/1 mS/cm |
| Accuracy | ±0.5 °C ± 1 digit; ±0.002 ± 1 digit; ±0.03 % F.S. ± 1 digit; ±0.5 % F.S. ± 1 digit |
| Calibration | Automatic 1 to 5 point calibration |
| Cell Constant | 0.1/1/10 cm-1 |
| Electrode connections | pH/conductivity: BNC; Temperature: RCA |
| Memory locations | 2000 groups |
| Memory Values | Numbering, measured value, temperature |
| Power supply unit | DC 9 V/600 mA |
| Temperature Compensation | 0 to 100 ° C (automatic or manual); 0 to 50 °C (automatic or manual) |
| Dimensions | 360 × 235 × 400 mm |
| Weight | 1.7 kg |
| Housing Protection Class | IP54 (protection against dust and splashing water) |
| Manufacturer | Apera Instruments |
| MPN | 28APE190113 / AI5634 |
| Item number | 28APE190113 / AI5634 |
The Apera Instruments PC9500 is a high-precision benchtop multi-parameter meter engineered for accurate pH and conductivity (EC) measurements in laboratory environments. Combining user-friendly design with advanced features, it ensures reliable data and efficient workflow.
Designed with a multilingual interface and intuitive graphic guidance, the PC9500 supports GLP-compliant data management and allows for secure, password-protected operations. The large, illuminated LCD provides real-time display of pH, conductivity, temperature, and calibration information.
With smart microprocessor integration, the PC9500 enables automatic calibration, temperature compensation, function configuration, self-diagnosis, and data logging. It comes equipped with a magnetic stirrer and electrode holder to streamline testing and enhance accuracy.
Key Features
- Measures pH, conductivity, and temperature
- GLP data management with time, date, sample ID, electrode, and user tracking

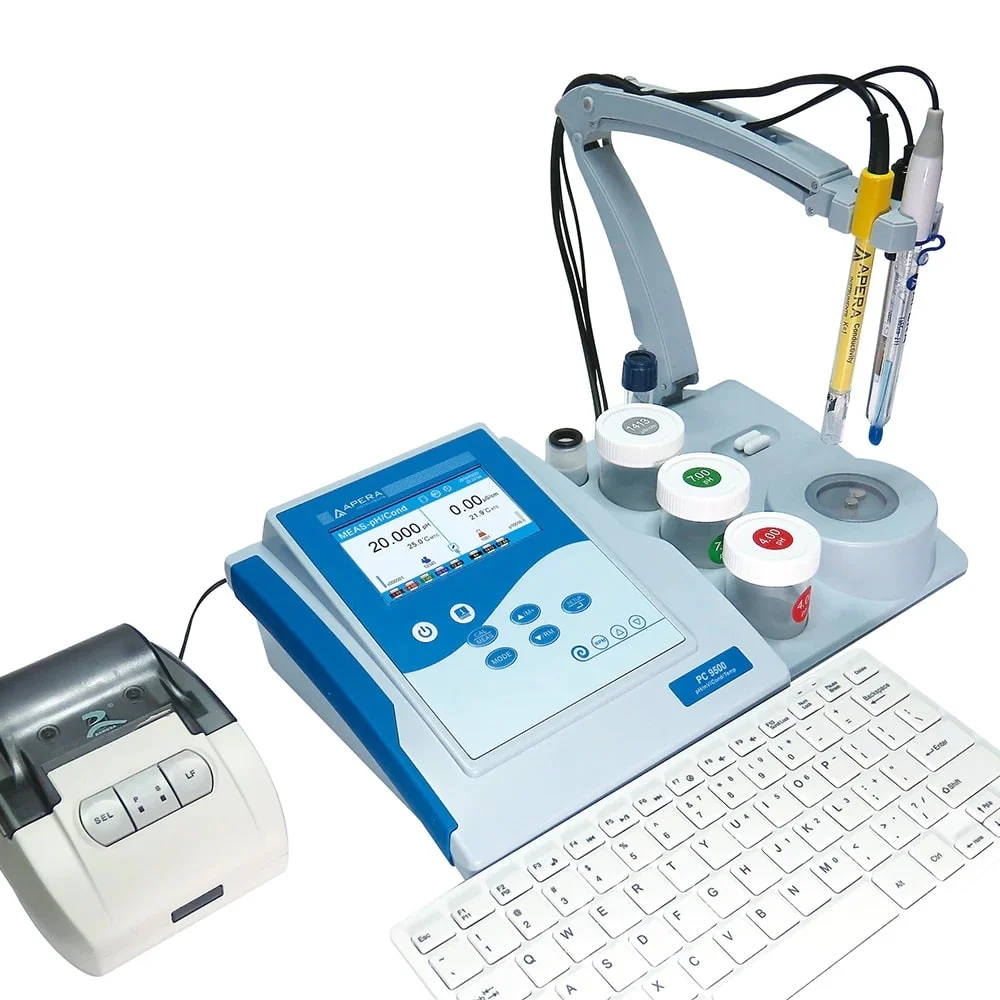

- USB output for data transfer and GLP printer support
- User-friendly operation with visual guidance
- Multilingual interface (English, German, Chinese, Spanish)
- Large illuminated LCD for simultaneous data display
- Automatic calibration and temperature compensation
- Built-in self-diagnosis and customizable function settings
- Includes magnetic stirrer with rotation speed memory and electrode holder
- 3-year manufacturer’s warranty (6 months on the electrode)
