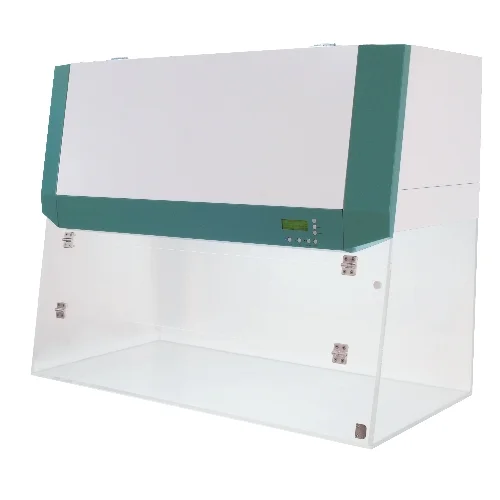

Jeio Tech PW-11 PCR Workstation with HEPA Filtration and UV Sterilisation
Jeio Tech PW-11 PCR Workstation with HEPA Filtration and UV Sterilisation for life-science, pharmaceutical and industrial laboratories.
| Air – Air flow type | Vertical |
|---|---|
| Air – Laminar airflow velocity (m / s / fpm) | 0.4 / 78.7 |
| Air – Main filter | HEPA (99.99% at 0.3 ㎛) |
| Air – Pre-filter | Polyester Fibers |
| Dimension (W×D×H) – Exterior (mm / inch) | 900×605×964 / 35.4×24×38 |
| Dimension (W×D×H) – Interior (mm / inch) | 880×585×602 / 34.6×23×23.7 |
| Dimension (W×D×H) – Net weight (Body) (kg / lbs) | 64.2 / 141.5 |
| Electrical requirements (230V, 50/60Hz) | 1.4A |
| Filter – Air cleanliness | ISO 14644-1 class 4 |
| Filter – HEPA filter | Typical efficiency of 99.99% at 0.3 ㎛ US MIL-STD -282 ; Micro glass fiber media, Particle board, Aluminum separator, Neoprene gaskets |
| Filter – Pre filter | Polyester fibers with an efficiency of 85% (A·F·I TEST) ; AL frame, Polyester fiber media |
| Illumination – LED lamp (254nm, W) | 10 |
| Illumination – LED lamp Intensity (Lux) | More than 1000 |
| Illumination – UV lamp (W) | 20 |
| Manufacturer Part Number | AAHB3012 |
| Material – U.V. protection | 99.9% |
| Material – Window (Front, Sides/ Rear) | Polycarbonate (Clear) |
| Material – Working table | Polycarbonate (Clear) |
| Max. air volume (cmh / cfm) | 697 / 408 |
| Min. air volume (cmh / cfm) | 209 / 121 |
| Noise level (dB) | Less than 60 |
| Manufacturer | JeioTech |
| MPN | AAHB3012 |
| Item number | AAHB3012 |
The Jeio Tech PW-11 PCR Workstation with HEPA Filtration and UV Sterilisation is specially designed to minimise sample contamination during PCR applications by combining an ISO Class 4 clean air environment with UV sterilisation.
The Jeio Tech PW-11 PCR Workstation with HEPA Filtration and UV Sterilisation is specially designed to minimise sample contamination during PCR applications by combining an ISO Class 4 clean air environment with UV sterilisation. It is equipped with a user-friendly microprocessor-based control panel, easily set digital timer for UV light exposure to deactivate DNA and RNA contaminants, and a built-in anti-glare fluorescent lamp to minimise shadows and relieve eye strain.
Features
- Performance
- ISO Class 4 (US Class 10) HEPA filter for optimal protection against cross-contamination (average life span of HEPA filter is 3 years depending on the test room conditions)
- High-quality polyester fibre pre-filter for trapping larger particles and increasing the life of the main HEPA filter
- Effective sterilisation using a long-life 254mm UV lamp (average life span of UV lamp is 8000 hours)
- Built-in anti-glare fluorescent lamp minimises shadows and relieves eye strain Convenience
- User-friendly microprocessor-based control panel
- Large capacity blower and easy blower speed adjustment by the control panel
- Easy-settable digital timer for UV light exposure to deactivate DNA and RNA contaminants (wait off, max. 30min)
Supplied in the United Kingdom by Lancetech Limited. Lead time 2-3 weeks.
