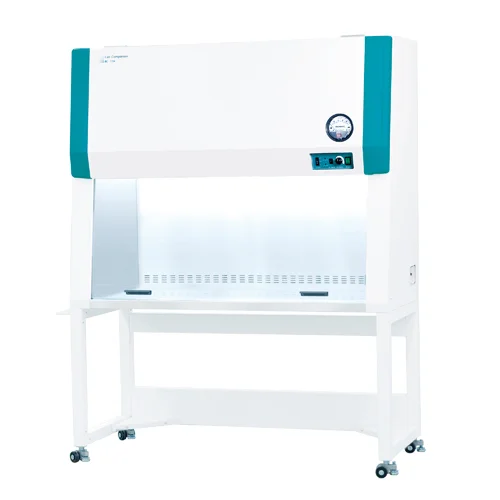

Jeio Tech BC-01B Vertical Laminar Flow Cabinet - Analogue Control
Jeio Tech BC-01B Vertical Laminar Flow Cabinet - Analogue Control for life-science, pharmaceutical and industrial laboratories.
| Air cleanliness within work space | ISO 14644-1 class 4, US Federal Standard 209E class 10 |
|---|---|
| Air flow type | Vertical laminar flow |
| Air volume (minimum / maximum) | 0 to 1020 cmh / 0 to 600 cfm |
| Dimension (W×D×H) – Exterior with stand (mm / inch) | 1135 x 620 x 1860 / 44.7 x 24.4 x 73.2 |
| Dimension (W×D×H) – Exterior without stand (mm / inch) | 1135 x 620 x 1150 / 44.7 x 24.4 x 45.3 |
| Dimension (W×D×H) – Interior (mm / inch) | 945 x 585 x 670 / 37.2 x 23.0 x 26.4 |
| Dimension (W×D×H) – Net weight (body + stand) (kg / lbs) | 170 / 374.8 |
| Dimension (W×D×H) – Net weight (body) (kg / lbs) | 140 / 308.6 |
| Electric socket outlets | 230V socket |
| Electrical requirements (230V, 1ph) | 60Hz / 1.25 A |
| Filters – HEPA filter | Typical efficiency of 99.99% on 0.3㎛ (US MIL- STD -282) ; Micro glass fiber Media, Particle board, AL separator, Neoprene gaskets |
| Filters – Pre filter | Polyester fibers with an filter efficiency of 85% (A·F·I TEST) ; Aluminum frame, Polyester fiber media |
| Illumination – Fluorescent lamp (W) | Electronically ballasted Fluorescent Lamp |
| Illumination – Intensity (lux) | > 650 |
| Illumination – UV lamp (W) | Electronically ballasted UV Lamp |
| Laminar airflow velocity (m / s / fpm) | 0.3 / 59 |
| Manufacturer Part Number | AAHA6012K |
| Materials – Main body | Steel powder coating |
| Materials – Windows (front / side) | Colorless and transparent UV absorbing 5mm tempered glass |
| Materials – Work surface | Stainless steel, grade 304, brushed finish |
| Noise level | Typically < 65dB at blower speed |
| Supplied As | 1 |
| Manufacturer | JeioTech |
| MPN | AAHA6012K |
| Item number | AAHA6012K |
With its vertical laminar air flow, the Jeio Tech BC-01B Vertical Laminar Flow Cabinet - Analogue Control offers a quick operation with the use of its simple adjustable analogue controls. High efficiency HEPA filter, for particles from 0.3 microns. Nominal downflow velocity of 0.3m/s (60fpm). Ergonomic 5 degree slope at front for maximum user comfort.
With its vertical laminar air flow, Jeio Tech's BC-01B Vertical Laminar Flow Cabinet - Analogue Control offers a quick operation with the use of its simple adjustable analogue controls. High efficiency HEPA filter, for particles from 0.3 microns. Nominal downflow velocity of 0.3m/s. Ergonomic 5 degree slope at front for maximum user comfort. It also comes with an ISO Class 4 (US Class 10) HEPA filter, the air from which minimises cross contamination in the work space and provides an abrasive-free working environment. Suitable for a variety of test applications such as plant tissue culture research and syringe filling. Please Note: Vertical Laminar Flow Cabinets offer product protection ONLY! If you require product AND user protection you should choose a Biological Safety Cabinet (Class II Cabinet)
Features
- Performance
- ISO Class 4 (US Class 10) HEPA filter for optimal protection against cross-contamination
- 0.3µm and larger particulates are removed with 99.9% efficiency, leak-tight HEPA filter which satisfies Class 10 (US Federal Standard 209E). The average life span of the HEPA filter is 3 years depending on the test room conditions)
- High-quality polyester fibre per filter for trapping larger particles and increasing the life of the main HEPA filter
- Exclusive diffusing muffler structure forms high quality laminar flow
- Quiet and comfortable working environment (less than 65dB) Convenience
- Built-in differential pressure gauge for easy checking of HEPA filter condition
- Comfortable front access to cartridge type of filters for easy replacement
Supplied in the United Kingdom by Lancetech Limited. Lead time 2-3 weeks.
