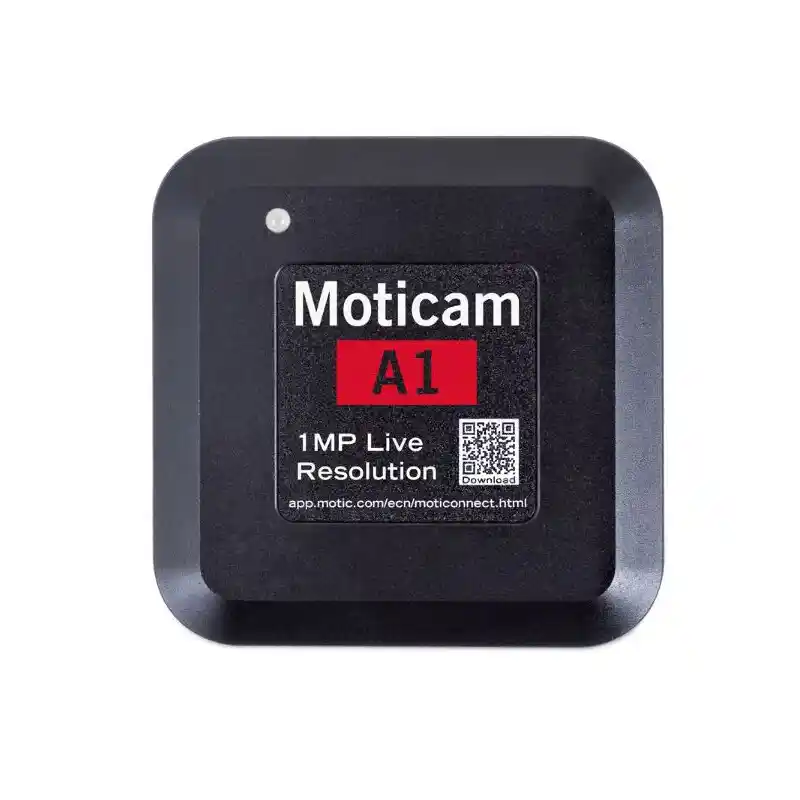

Motic Camera A1, colour, sCMOS, 1/3.1, 4.1µ, 30fps, 1MP, USB 2.0

Moticam A Series

Highlights of the series:

Ideally suited for beginners

Models from 1 to 16 MP

Easy to use

Robust metal housing

Flexible all-in-one solution with a wide range of accessories

The Moticam A1 is suitable for both beginners and advanced enthusiasts looking for an affordable digital solution for their microscope. Take pictures at 720p and work with a consistent frame rate and all accessories.

Specifications Moticam A1:

Sensor type: sCMOS

Sensor size: 1/3.1"

Image area: 5.95 mm (diagonal)

Number of pixels: 1MP

Live display mode via USB: 1280x720, 1024x768 pixels

Pixel size: 4.1x4.1µm

Scan mode: Progressive

Shuttermode: Rolling shutter

Data transfer: USB 2.0

Max. frames per second (fps): 1280x720 @ 30 fps, 1024x768 @ 30 fps

Operating temperature: -10 to +60 degrees Celsius, non-condensing

Sensitivity: >2000mV

Supported instruments: TWAIN, SDK and Direct Show Driver

Supported operating systems: Microsoft Windows 7/8/10, MAC OSX10.9, Linux UBUNTU1604 or higher

Minimum computer requirements: 2GHz dual-core processor, 2GB RAM

Lensconnection: C-mount

Focusable lens: 12 mm

Software: MotiConnect for Windows/OSX/Linux (download only)

Software features: Still image and video recording, still image measurement, image settings, white balance, automatic and manual exposure, individual lens calibration system.

Power supply: 5V (from USB port)

Scope of delivery: CS ring adaptor, focusable lens, 30 mm and 38 mm eyepiece adaptors, USB 2.0 cable, Motic 4-position calibration slide holder, macro tube.

Moticam A1

Sensor type sCMOS

Sensor size 1/3.1"

Imaging area 5.95mm (Diagonal)

Capture resolution 1MP

Live display mode through USB 1280x720, 1024x768 pixels

Pixel size 4.1x4.1µm

Scan mode Progressive

Shutter Mode Rolling Shutter

Data transfer USB 2.0

Max. frames per second (fps) 1280x720 @ 30 fps, 1024x768 @ 30 fps (*)

Operating temperature From -10 to +60 Degrees Celsius non condensing

Sensitivity >2000mV

Support device TWAIN, SDK and Direct Show Driver

Supported OS Microsoft Windows 7/8/10, MAC OSX10.9, Linux UBUNTU1604 or higher

Minimum computer requirements 2GHz dualcore - RAM memory 2GB

Lens mount C-Mount

Focusable lens 12mm

Software MotiConnect for Windows/OSX/Linux (Download only)

Functions Still image and video capture, still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.

Components:

CS ring adaptor

focusable lens

30mm and 38mm eyepiece adapters

USB 2.0 cable

Motic 4-dot calibration slide

macro tube

calibration card
