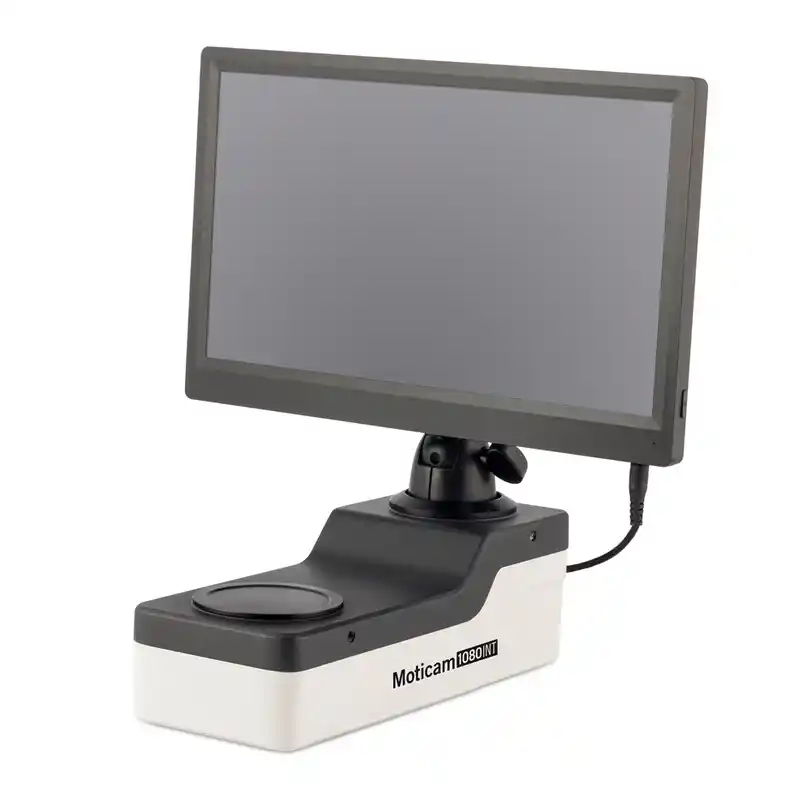

Motic Camera Kamera 1080 INT, f. BA-series, 8MP

The Moticam 1080 INT is an intermediate multitasking camera for the BA series and delivers impressive, fast 1080p full HD live images with maximum colour fidelity on the integrated LCD screen. The camera does not require a computer thanks to the on-board software, which can be operated using a wireless mouse connected to the USB port and the integrated 11.6" full HD monitor.

Specifications Moticam 1080 INT

Sensor type: CMOS

Sensor format: 1/2.8"

Active sensor area: 5,346 x 3,003 mm

Still image resolution: 8MP (3840x2160 pixels)

Image resolution on SD card: 8MP (3840x2160 pixels)

Video resolution on SD card: 1920x1080p (Full HD)

Live image via USB: 1920x1080 pixels (Full HD)

Live image via HDMI: 1920x1080 (Full HD)

Pixel size: 2.8x2.8μm

Scan mode: Progressive scan

Data transfer: HDMI (1080p), USB 2.0

Max. frame rate (fps) USB: 1920x1080 (Full HD) @ 30 fps, HDMI: 1920x1080 (Full HD) @ 60 fps

Exposure time: 0.06 ms - 40 ms with auto exposure (0.06 ms to 999 ms with manual exposure)

Operating temperature: From -10° to +60° Celsius, non-condensing

Signal-to-noise ratio: 40dB

Dynamic range: 71dB

Sensitivity: 0.51V (at 1/30 sec)

Card slot: SD card (max. 32GB)

Control buttons: On/Off

Supported instruments: TWAIN and Direct Show drivers

Supported operating systems: Windows XP SP3/Vista/7/8/10 and MAC OSX, Linux

Minimum system requirements: 2GHz dual-core processor, 2GB RAM, minimum 512MB video memory

Thread: C-mount

Focusable lens: 12 mm

Screen: 11.6" 1920x1080 Pixel Full HD screen with mounting

Software: On-board software

Software functions: Single image capture, live image with zoom in/out, magnifying glass, ROI, mirror, rotate, split, freeze, crosshairs, gallery, auto/manual exposure, gain, auto/manual white balance, saturation, contrast, gamma, sharpness, noise reduction, user settings, additional languages (English, Chinese and Japanese), SD card formatting.

Mains voltage: 12V (external power supply)

Scope of delivery: CS ring, focusable lens, 30 mm and 38 mm eyepiece adaptors, USB 2.0 cable, HDMI cable, Motic 4-point calibration scale, macro tube, Motic Images Plus 3.0 for PC/OSX/Linux, universal power pack.

Moticam 1080 INT

Intermediate digital camera for BA Series

Sensor Type: CMOS

Sensor Size: 1/2.8"

Capture resolution (on SD-card) - Still Image: 8.0MP (3840 x 2160) / Video: Full HD 1920 x 1080

Live Display Mode (through USB): 1920 x 1080 (Full HD) @ 30 fps

Live Display Mode (through HDMI): 1920 x 1080 (Full HD) @ 60 fps

Data Transfer: HDMI (1080p) and USB 2.0

Screen: LCD 11,6" Full HD

On-board software

Supported OS: Microsoft Windows XP SP3/Vista/7/8/10 and MAC OSX & Linux

Minimum Computer Requirements: 2GHz dualcore – RAM memory 2GB – Video

Specifications Moticam 1080 INT

Sensor type: CMOS

Sensor size: 1/2.8"

Imaging area: 5.346x3.003mm

Capture resolution: 8MP (3840x2160 pixels)

Image capture resolution (On SD-card): 8MP (3840x2160 pixels)

Video capture resolution (On SD-card): 1920x1080p (Full HD)

Live display mode through USB: 1920x1080 pixels (Full HD)

Live display mode through HDMI: 1920x1080 (Full HD)

Pixel size: 2.8x2.8μm

Scan mode: Progressive

Data transfer: HDMI (1080p), USB 2.0

Max. frames per second (fps) USB: 1920x1080 (Full HD) @ 30 fps, HDMI: 1920x1080 (Full HD) @ 60 fps

Exposure time: "0.06ms ~ 40ms with Auto Exposure mode, (0.06ms ~ 999ms with Manual Exposure mode)"

Operating temperature: From -10 to +60 Degrees Celsius non condensing

Max. signal to noise ratio: 40dB

Dynamic range: 71dB

Sensitivity: 0.51V (Typical at 1/30 sec)

Slot: SD Card (max 32Gb)

Buttons: On/Off

Supported device: TWAIN and Direct Show Driver

Supported systems: OS Windows XP SP3/Vista/7/8/10 and MAC OSX, Linux

Minimum computer requirements: 2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB

Screen: 11.6" Native 1920x1080 pixels Full HD Screen with Bracket

Software: On-board software…
