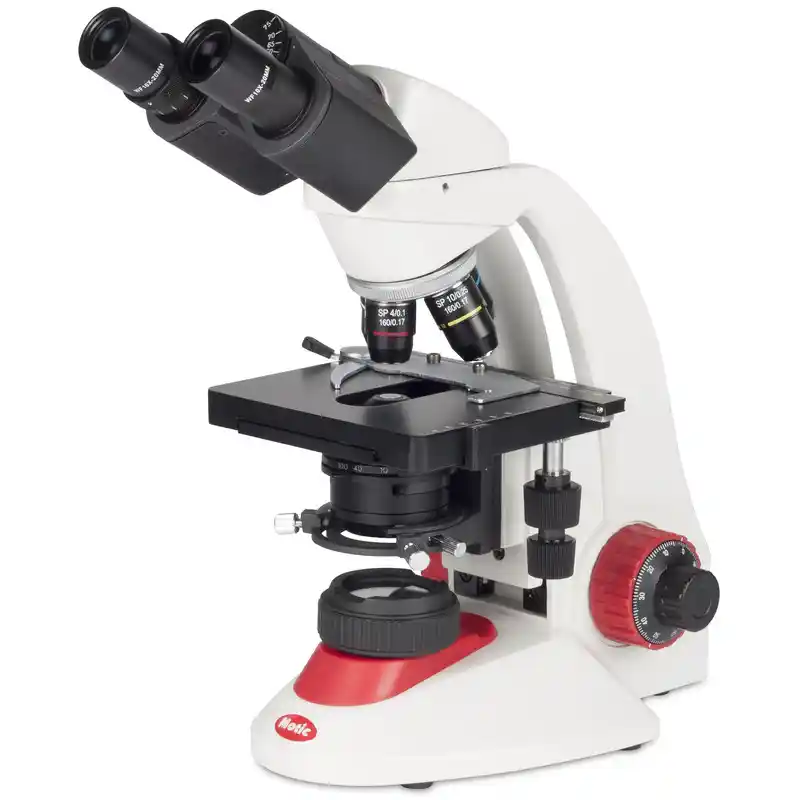

Motic Microscope RED230, bino

RED200 Series

The RED200 Series is designed for advanced biology students, teachers, professors, doctors and lab technicians

The large and heavy body ensures stability and prevents any distortion of unwanted movements while observing the sample and the large coaxial focusing controls are easily accessible and of high precision.

For the RED200 Series, Motic is also using its finest optics. The Semi Plan Achromatic (SP) objectives are known for their high quality and supreme contrast. Crisp clear images will be produced over a 20mm field of view.

All RED200 Series microscopes come with a set of 4X, 10X, 40X and 100X/Oil objectives to cover the regular magnification range.

Flexibility and quality, all in one Series!

RED230

Binocular head Siedentopf type, 30º inclined, 360º rotating

Widefield eyepieces WF10X/20mm

Reversed quadruple revolving nosepiece

Semi Plan Achromatic objectives SP 4X, 10X, 40X S, 100X S-Oil

Coaxial coarse and fine focusing system with tension adjustment

Built-in low position coaxial mechanical stage

Focusable and centrable Abbe condenser N.A. 1.25 with iris diaphragm

Koehler LED illumination 3W with intensity control
