TN480 Infrared Turbidimeter with GLP Data Management and USB Output

Name: TN480 Infrared Turbidimeter with GLP Data Management and USB Output
Brand: Apera Instruments
SKU: AI486
Price: 867 GBP
Availability: BackOrder

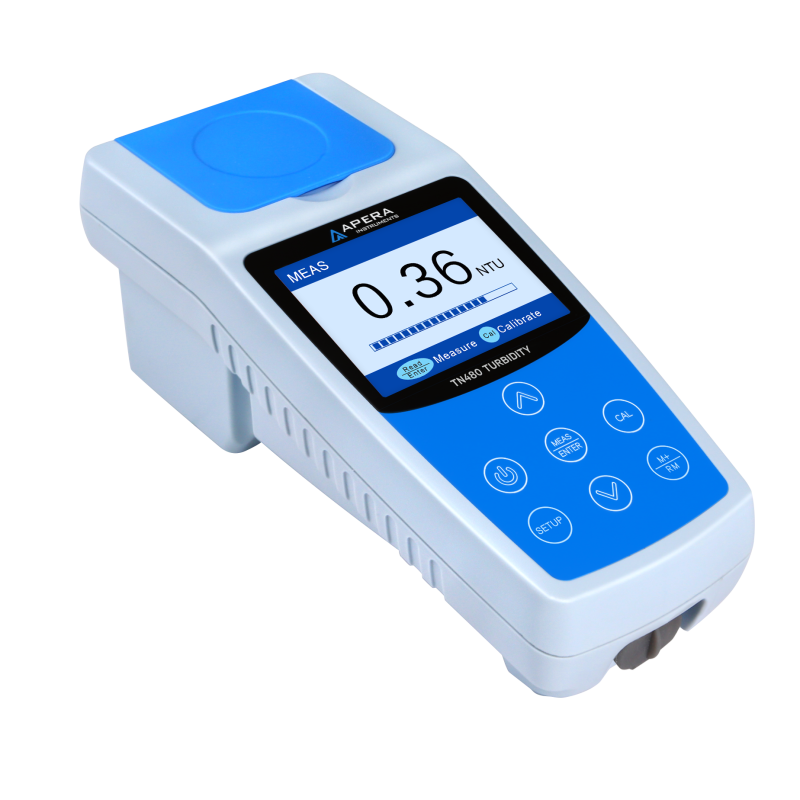

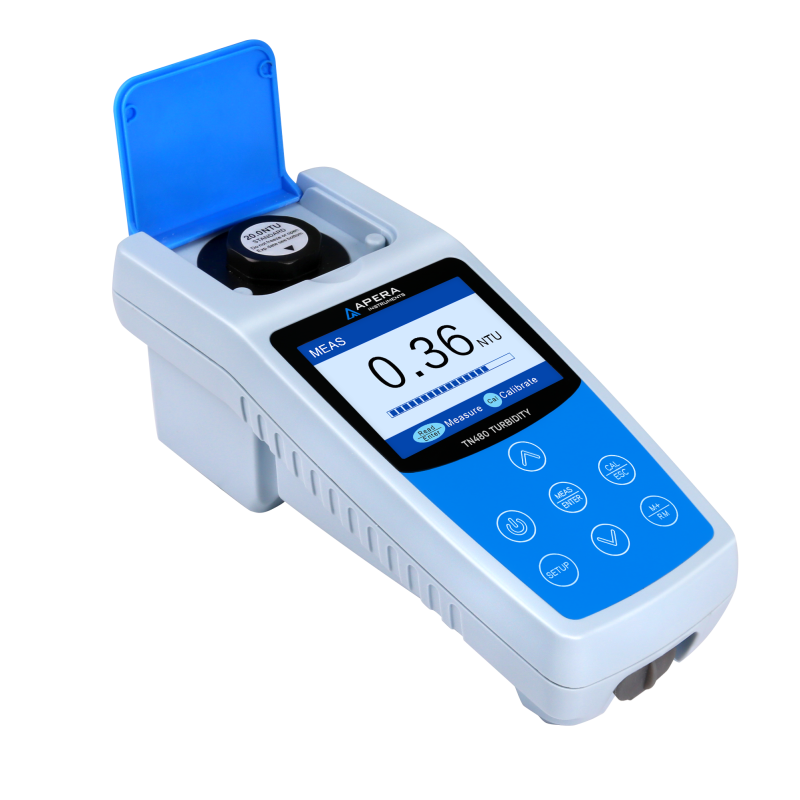

Apera Instruments TN480 Infrared Turbidimeter with GLP Data Management and USB Output, measuring 0 – 1000 NTU, automatic range selection: 0.01 – 19.99 NTU 20.0 – 99.9 NTU 100 – 1000 NTU. IP67-rated housing and runs on 4× AA alkaline batteries.

The Apera Instruments TN480 Infrared Turbidimeter delivers fast, accurate, and reliable turbidity measurements for liquids using a nephelometric 90° scattering method. Equipped with an infrared LED (860 ± 30 nm), it complies with ISO 7027 and DIN EN 27027 standards for precise determination of turbidity in aqueous solutions.

The TruRead™ measurement mode is ideal for rapidly settling samples or fluctuating measurements, ensuring stable and repeatable results. The TN480 features GLP data management with a memory capacity of 200 data sets, which can be exported via USB to a PC for real-time monitoring and analysis.

A large TFT color screen with intuitive on-screen guidance enhances usability, while the IP67 waterproof housing makes it suitable for both laboratory and field applications such as drinking water analysis and environmental monitoring.

Key Features

Fast & Accurate Turbidity Measurements – Infrared 90° nephelometric technology ensures precise results.
TruRead™ Measurement Mode – Designed for fast-settling samples and fluctuating readings.
GLP Data Management – Stores up to 200 data sets with USB connectivity for easy data transfer.
Large TFT Color Screen – Provides clear instructions and real-time progress indicators.
EPA-Certified AMCOClear® Standards – Non-toxic, ready-to-use calibration solutions.
IP67 Waterproof Design – Ideal for both field and laboratory applications.
Convenient Storage & Transport – Comes in a rugged carrying case with accessories.
CE-Certified & 2-Year Warranty – Ensures quality, safety, and long-term reliability.

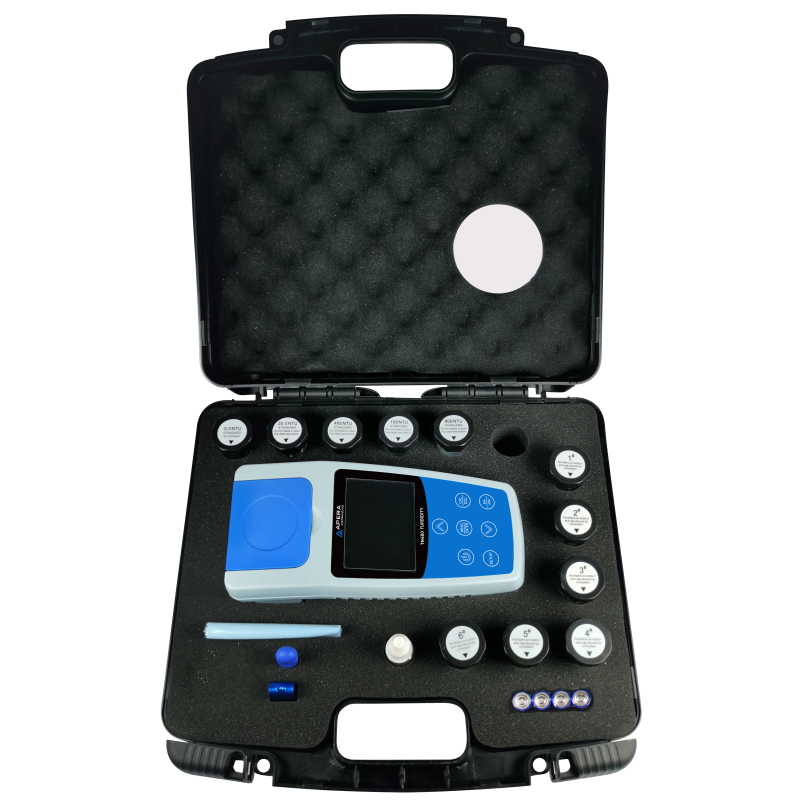

Complete Set Includes

TN480 Infrared Turbidimeter
Calibration Solutions (0.0, 20.0, 100, 400, 800 NTU)
6 Sample Cuvettes
10ml Silicone Oil
Microfiber Cloth
USB Stick with Software & USB Cable
4x AA Batteries & Screwdriver
User Manual
Rugged Carrying Case

The Apera TN480 Infrared Turbidimeter is a versatile and professional-grade solution for laboratories, environmental agencies, and water quality testing professionals.

Measuring Range	0 – 1000 NTU, automatic range selection: 0.01 – 19.99 NTU 20.0 – 99.9 NTU 100 – 1000 NTU
Resolution	0.01 / 0.1 / 1 NTU (FNU)
Accuracy	≤ ±2% of the measured value + stray light
Calibration Memory	Calibration points, date and time
Calibration standard	0, 20, 100, 400 and 800 NTU (FNU) AMCO Polymer or Formazin
Data Storage	200 measurement groups
Dimensions & Weight	Meter: (90×203×80) mm/ 385 g Complete set: (310×295×110) mm/ 1.5 kg
Light Detector	Silicon photocell
Light Source	Infrared LED (860±30nm)
Measuring cells	∅25×60 mm, borosilicate glass with screw cap
Measuring Method	ISO 7027 and DIN EN 27027 compliant nephelometric method (measurement of scattered infrared light at 90°)
Measuring Modes	Normal measurement and TruRead™ measurement
Operating Conditions	Temperature: 0 – 50 °C (32 °F – 122 °F); rel. Humidity: 0 – 90% at 30°C, 0 – 80% at 40°C, 0 – 70% at 50°C, no condensation
Reproducibility	≤ ±1% of the measured value or 0.02 NTU (FTU), whichever is greater
Security Certificate	CE and RoHS
Stray Light	≤ 0.02 NTU (FNU)
Test Volume	18 ml
Display	TFT color screen
Power Supply	4× AA alkaline batteries
Housing Protection Class	IP67
Interface	USB
Manufacturer	Apera Instruments
MPN	AI486
Item number	AI486
