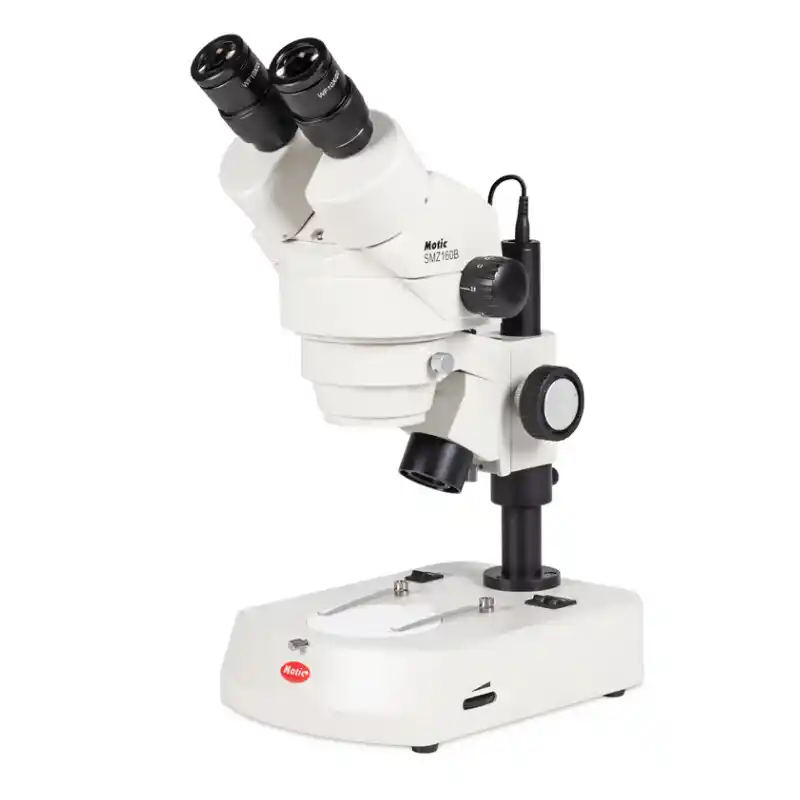

Motic Stereo Zoom Microscope SMZ-160-BLED, LED, 0.75x-4.5x

Highlights of the SMZ-160 series

Greenough system

Field of view: 20

Magnification range from 7.5X to 45X

Zoom 6:1

Click stops enable precise reproduction of magnification during measurements

Specification SMZ-160-BLED (1100201300171)

Optical system: Greenough

Observation tube: Binocular head

Viewing angle: 45º inclined

Interpupillary distance: 50-75 mm

Diopter adjustment: On both eyepiece sockets, +/- 5 diopters

Eyepieces: Wide field WF10X/20mm

Objective system: Zoom ratio 6:1

Lenses: 0.75X - 4.5X

Working distance: 100 mm

Tripod type: Column tripod with transmitted light illumination

Headmount: For Ø25mm column and Ø76mm head with incident light illumination

Focus: Coarse focus with smoothness adjustment

Focusing travel: 43 mm

Incident light illumination: LED 3W with intensity control

Transmitted light illumination: LED 3W with intensity control

Transformer: External

Power supply: 100 -240V (CE)

Dimensions LxWxH: 237x170x398 mm

Base plate: 237 x 170 mm

Stand column / arm: Height 205 mm / Ø25 mm

Net weight: 3 kg

Scope of delivery: Dust cover, 1 black/white table insert plate, 1 frosted glass table insert plate

Contrast methods:

Bright field: Yes

Dark field: with optional add-on

Polarization: with optional add-on
