Motic Camera BTI, colour, CMOS, 1/3 inch, 4MP, WiFi

Name: Motic Camera BTI, colour, CMOS, 1/3 inch, 4MP, WiFi
Brand: Motic
SKU: 76684
Price: 643 GBP
Availability: BackOrder

Motic Camera BTI, colour, CMOS, 1/3 inch, 4MP, WiFi, interface Wi-Fi. A digital camera for live viewing and image capture in microscopy.

Price excl. VATGBP

£643.00

£771.60 incl. VAT (20%)

Quantity

Request COA/SDS

Ask AI about this product

Product type	Camera
Resolution	4MP
Sensor	CMOS
Sensor size	1/3 inch
Colour	Colour
Interface	Wi-Fi
Manufacturer	Motic
MPN	76684
Item number	76684

Moticam BTI

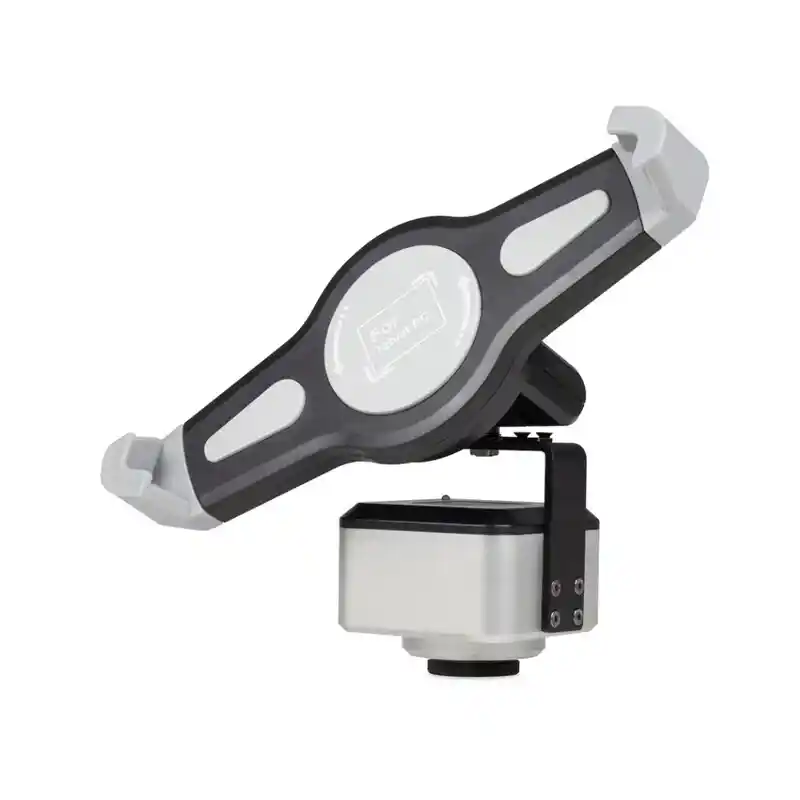

The Moticam BTI is the most flexible solution for tablets. It consists of a 4 MP camera with a built-in adjustable holder to which you can attach your own tablet (up to 10"). The camera can be connected to an iOS or Android tablet via Wi-Fi. Moticam BTI helps microscope users visualise, edit and share microscope images and enables computer-free digital microscopy.

Specifications Moticam BTI

Mounting: for tablets from 7" to 10" (tablet not included)

Sensor type: CMOS

Sensor size: 1/3"

Image area: 5.44 x 3.07 mm

Number of pixels: 4.0 MP (2560x1440 pixels)

Live display mode via USB: depends on the display resolution of the tablet

Live display mode via Wi-Fi: 1280x720, 1920x1080 pixels (Full HD)

Live display mode via Ethernet: 1280x720, 1920x1080 pixels (Full HD)

Pixel size: 2.0 x 2.0 µm

Scan mode: Progressive

Data transmission: Wi-Fi (2.4 & 5 GHz), Ethernet

Max. frames per second (fps): 1920x1080 @ 30fps, 1280x720 @ 30fps (depending on Wi-Fi strength, under optimal lighting conditions and in accordance with the minimum computer requirements)

Exposure time: 0.03 msec to 0.03 sec

Operating temperature: -10 to +50 degrees Celsius, non-condensing

Signal-to-noise ratio: 38.3 dB

Dynamic range: 64.4 dB

Sensitivity: 1.9 V/Lux-sec (550 nm)

Supported instruments: Universal web browser (HTML5)

Supported operating systems: Microsoft Windows 7/8/10, MAC OSX, Linux, Android 4.0 or higher, iOS7 or higher

Minimum computer requirements: 2GHz dual-core processor, 2GB RAM, at least 512 MB video memory

Lens connection: C-mount

Software: Motic Images Plus 3.1 for Windows, OSX and Linux. MotiConnect app for iOS and Android.

Software features: Still image and video recording, still image measurement, image settings, white balance, automatic and manual exposure, individual lens calibration system.

Power supply: 12V (external)

Scope of delivery: CS ring adaptor, Motic 4-position calibration slide, macro calibration card, Universal power pack 100V-240V (CE).
