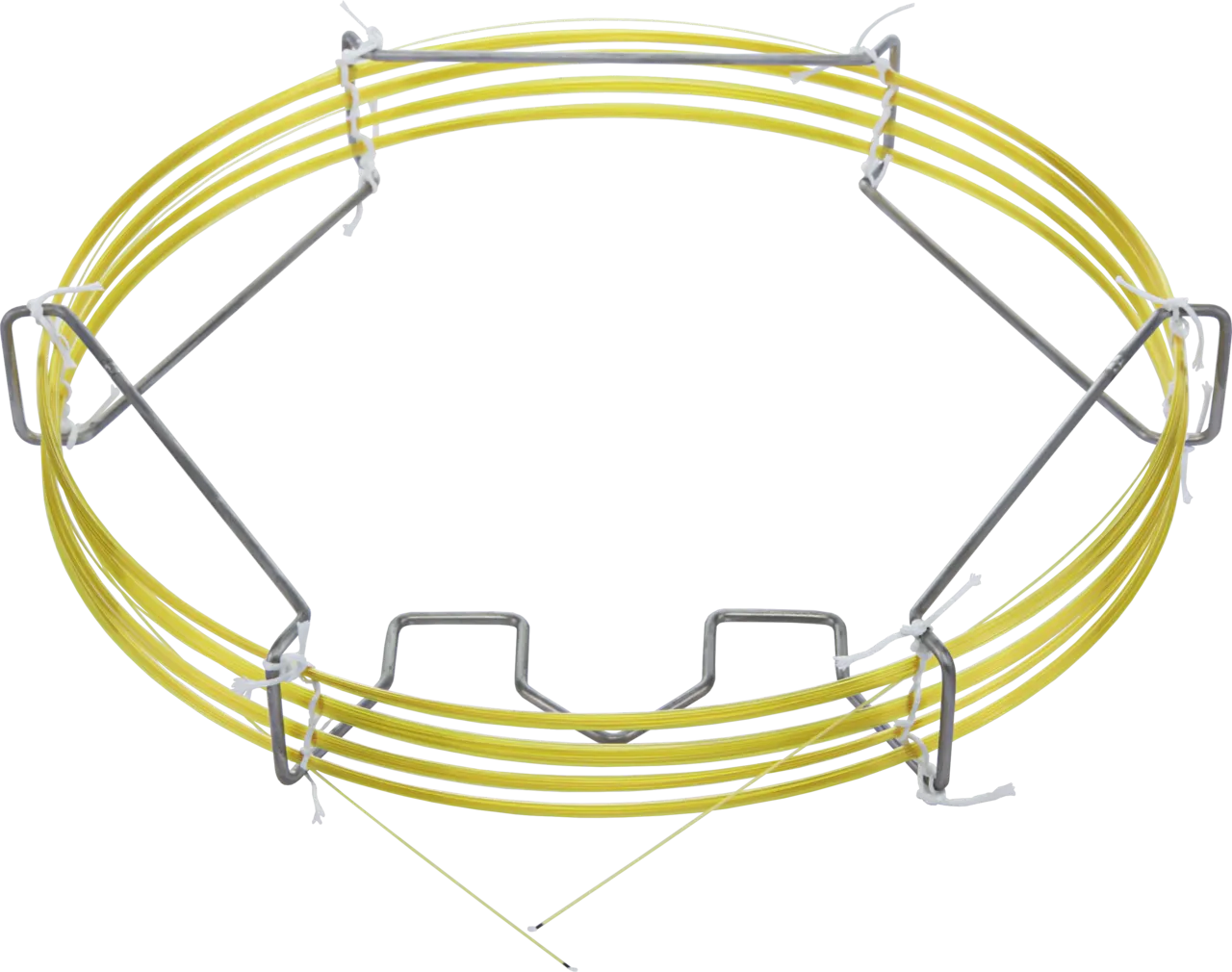

FS capillary column CW 20 M-AM ID: 0.32 mm, film thickness: 0.25 µm length: 25 m
USP G16
Macherey-Nagel

FS capillary column CW 20 M-AM ID: 0.32 mm, film thickness: 0.25 µm length: 25 m

· · Pack: 1 pack
PhaseCW 20-M-AM
MethodGas chromatography (GC)
USP NumberG16
Film Thickness0.25 µm
Product rangeChromatography, filtration and rapid tests
Cage size7" (inch)
Column DescriptionCW 20 M-AM
Column inner diameter0.32 mm
CompositionPolyethylene glycol (PEG), especially deactivated for the analysis of polyfunctional amines
Integrated precolumnNo
PolarityPolar
Tmax isotherm220 °C
Tmax temp. program240 °C
TypeGC column
USP listingNot available or proprietary
Column length25 m
Length25 m
Internal Diameter (I.D.)0.32 mm
HardwareFused Silica coated with polyimide coiled/wound on metal cage
Housing typeWall coated open tubular (WCOT) capillary column, internal wall of capillary is coated with a very fine film of liquid stationary phase
Max. Operating Temperatureup to 220/240°C
ManufacturerMacherey-Nagel
MPN733299.25
Item number733299.25
Pack size1 pack
Storage temperature15–25 °C / 59–77 °F
Hazardous materialNo
Gross weight (incl. packaging)262.1 g / 0.58 lbs
Packaging dimensions240 x 214 x 69 mm / 9.45 x 8.43 x 2.72 Inch
Scope of delivery1x GC column coiled/wound on metal cage, user manual, certificate of analysis
Package SpecificationPolyethylene Glycol (PEG)
