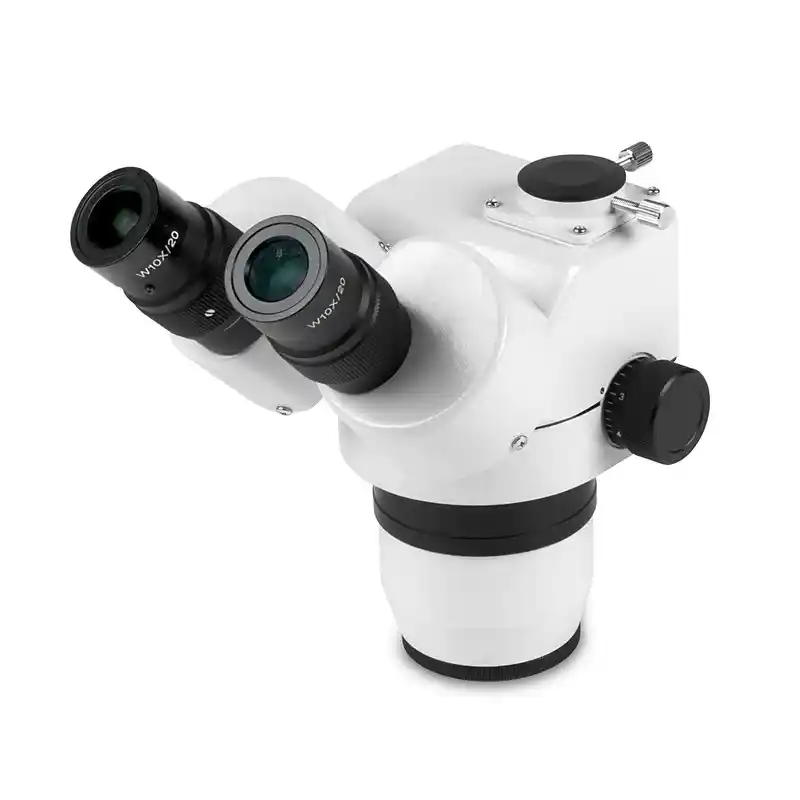

Motic SMZ-143 head, trinocular

SZM-140

Make use of the convenience and versatility of seeing a large part of your sample image at 10X magnification, then zooming continuously to close-up details at 40X…or any point in between. The SMZ140 Series offers a high optical performance combined with a special designed incident and transmitted intensity controlled halogen illumination.

Model: SMZ-143, trinocular

Optical System: Greenough

Observation Tube: Binocular head

Interpupillary distance: 54-76mm

Diopter adjustment: On both tubes, +/- 5 diopter

Inclination: 45° inclined, 360º rotating

Eyepieces: WF10X/20mm

Objectives system: Zoom, ratio1:4

Objectives magnification: 1X~4X

Working distance: 80mm
