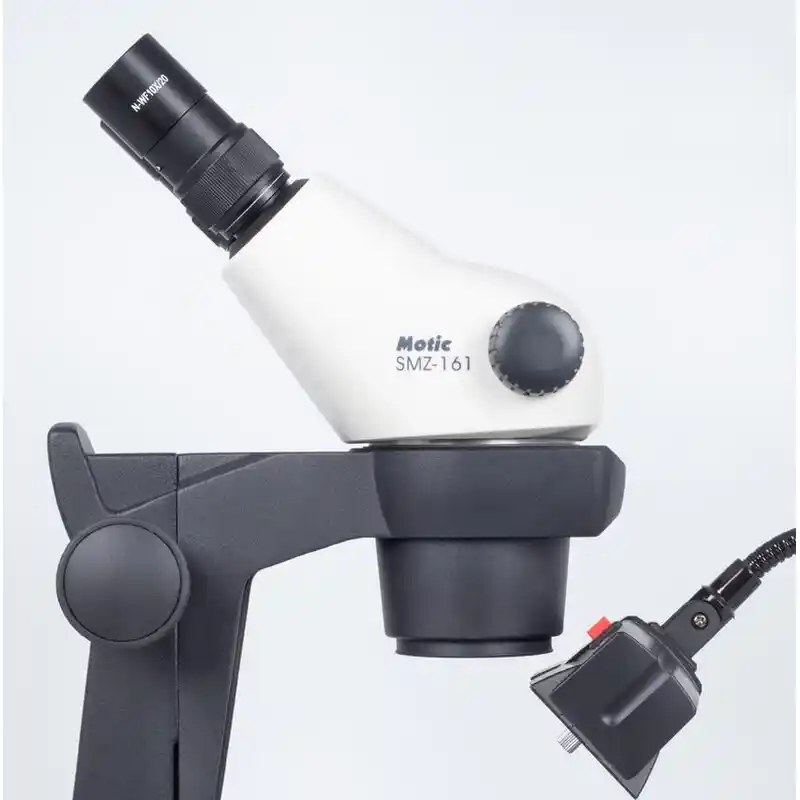

Motic Stereo zoom microscope GM-161, bino, fluo, 7.5-45x, wd 110mm

GM-161, binocular

Optical system Greenough

Inclination 45º inclined

Interpupillary distance 50-75mm

Diopter adjustment On both tubes, +/- 5 diopter

Eyepieces Widefield WF10X/20mm

Objectives system Zoom, ratio 6:1

Objectives 0.75X~4.5X

Working distance 110mm

Stand type 360º rotary base

Diaphragm Iris diaphragm, adjustable aperture Ø41mm - Ø2mm

Head holder For Ø76mm head

Focus mechanism Coarse focusing system with tension adjustment

Focusing stroke 125mm

Incident illumination Fluorescent 7W with Gooseneck adjustable

Transmitted illumination Quartz Halogen 6V/30W with intensity control

Illumination features Darkfield illuminator

Transformer Internal

Power supply 100-240V (CE)

Accessories included

dust cover

stainless steel

wire stone holder

aluminium carrying case

Dimensions LxWxH 391x236x500mm

Base 306x236mm

Column/Arm Height 268mm, 45º tilting arm

Net weight 8.2kg
