Macherey-Nagel

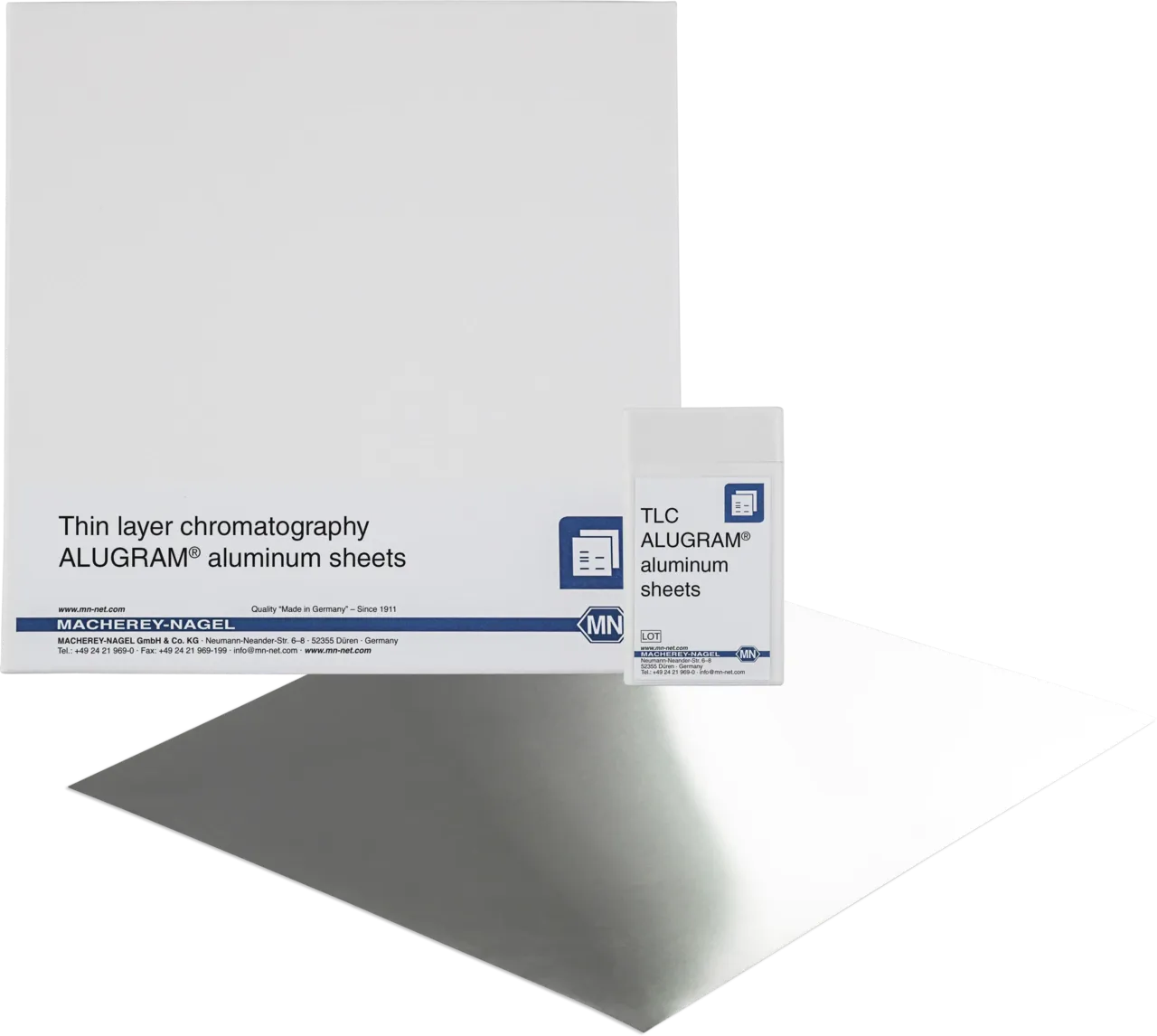

ALUGRAM-Sheets SIL G/UV254 thickness: 0,2 mm, size: 5 x 10 cm pack of 50
· · Pack: 1 pack
| Phase | SIL G UV254 |
|---|---|
| Method | Thin layer chromatography (TLC) |
| Mode | Normal phase (NP) |
| Base Material | Aluminum sheets coated with silica gel |
| Particle Size | 5–17 µm |
| Particle shape | Irregular |
| Particle type | Fully porous particles (FPP) |
| Pore Size | 60 Å |
| Surface chemistry | Unmodified silica gel (SiOH) |
| pH stability | 2.0–8.0 |
| Product range | Chromatography, filtration and rapid tests |
| Binder | Yes |
| Layer hardness | Standard, soft |
| Layer thickness | 0.20 mm |
| Plate size | 5x10 cm |
| Pore volume | 0.75 mL/g |
| Recommended Application | Aflatoxins, Alkaloids, Amines, Amino acids, Analgesics, Antibiotics, Hormones, Marihuana compounds, Normal phase (NP), Patulin, Standard TLC applications, Steroids, Sweeteners, Vitamins |
| Support material / backing | Aluminium |
| Temperature stability | High |
| UV indicator | Yes |
| Product Line | ALUGRAM |
| Manufacturer | Macherey-Nagel |
| MPN | 818160 |
| Item number | 818160 |
| Pack size | 1 pack |
| Storage Temperature | 15–25 °C / 59–77 °F |
| Hazardous material | No |
| Gross weight (incl. packaging) | 168 g / 0.37 lbs |
| Packaging dimensions | 110 x 60 x 25 mm / 4.33 x 2.36 x 0.98 Inch |
| Scope of delivery | 50x TLC aluminum sheets / foils (5x10 cm) |
ALUGRAM SIL G/UV254, 5x10 cm. This item is supplied as 1 pack.
