| Phase | SIL G UV254 |
|---|---|
| Method | Thin layer chromatography (TLC) |
| Mode | Normal phase (NP) |
| Base Material | Polyester sheets coated with silica gel |
| Particle Size | 5–17 µm |
| Particle shape | Irregular |
| Particle type | Fully porous particles (FPP) |
| Pore Size | 60 Å |
| Surface chemistry | Unmodified silica gel (SiOH) |
| pH stability | 2.0–8.0 |
| Product range | Chromatography, filtration and rapid tests |
| Binder | Yes |
| Layer hardness | Standard, soft |
| Layer thickness | 0.20 mm |
| Plate size | 40x20 cm |
| Pore volume | 0.75 mL/g |
| Recommended Application | Aflatoxins, Alkaloids, Amines, Amino acids, Analgesics, Antibiotics, Hormones, Marihuana compounds, Normal phase (NP), Patulin, Standard TLC applications, Steroids, Sweeteners, Vitamins |
| Support material / backing | Polyester |
| Temperature stability | < 185 °C / < 365 °F |
| UV indicator | Yes |
| Product Line | POLYGRAM |
| Manufacturer | Macherey-Nagel |
| MPN | 805024 |
| Item number | 805024 |
| Pack size | 1 pack |
| Storage Temperature | 15–25 °C / 59–77 °F |
| Hazardous material | No |
| Gross weight (incl. packaging) | 1210 g / 2.67 lbs |
| Packaging dimensions | 410 x 210 x 20 mm / 16.14 x 8.27 x 0.79 Inch |
| Scope of delivery | 25x TLC polyester sheets / foils (40x20 cm) |

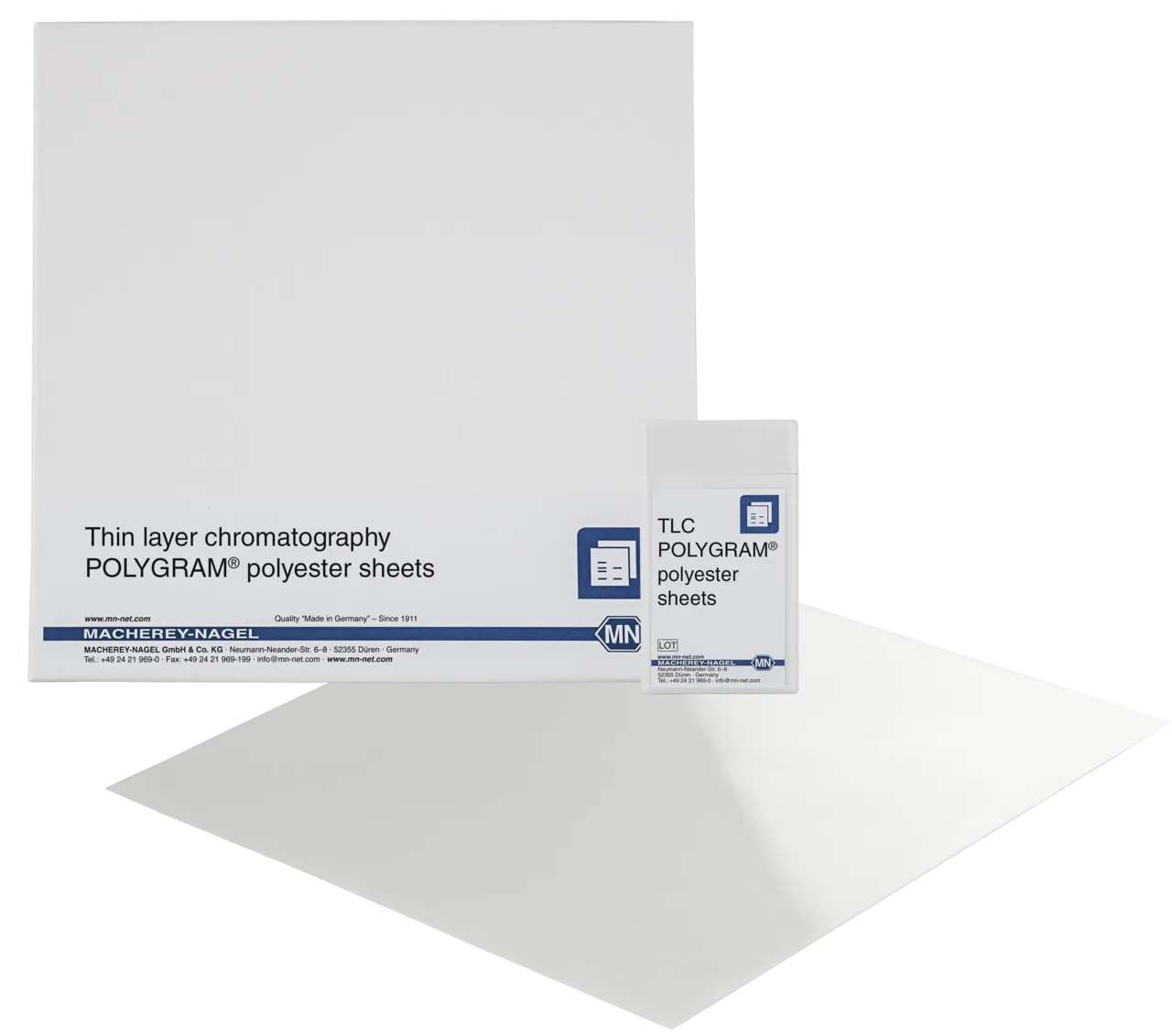

POLYGRAM SIL G UV254, 40x20 cm. This item is supplied as 1 pack.
Product documents
Technical datasheet — POLYGRAM sheets SIL G/UV254 size: 40 x 20 cm pack of 25Sign in to download
Documents are available to registered customers. Sign in or create a free account — it takes a minute.
Shipping & safety
Standard courier shipping. International orders include commercial invoice and HS-code documentation.
