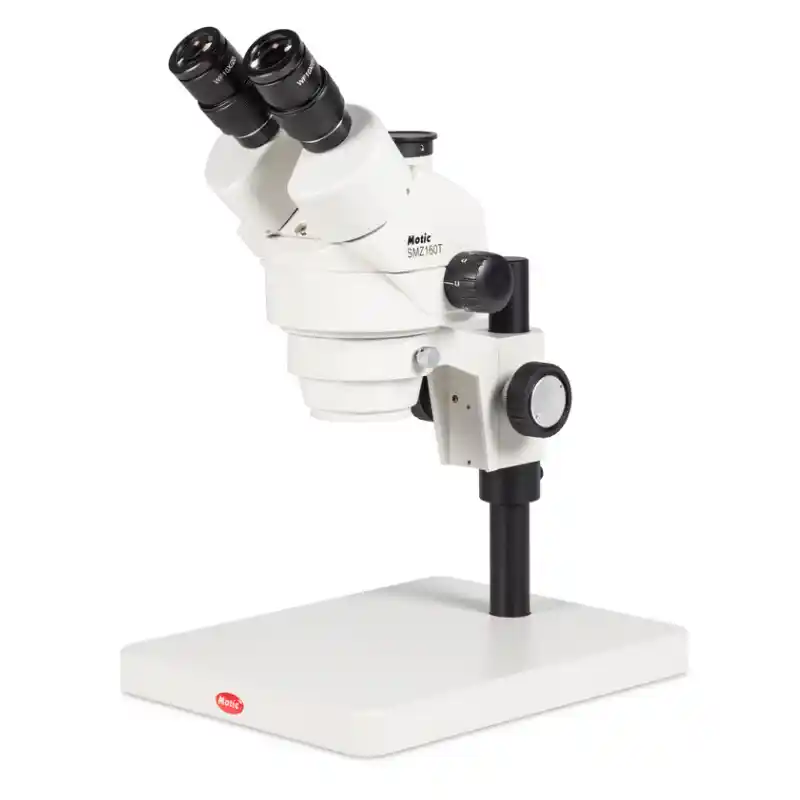

Motic Stereo Zoom Microscope SMZ-160-TP, 0.75x-4.5x

Highlights of the SMZ-160 series

Greenough system

Field of view: 20

Magnification range from 7.5X to 45X

Zoom 6:1

Click stops enable precise reproduction of magnification during measurements

Specification SMZ-160-TP (1100201300161)

Optical system: Greenough

Observation tube: Trinocular head

Viewing angle: 45º inclined

Beam splitter Trinocular tube: 50:50 fixed

Pupillary distance: 50-75 mm

Diopter adjustment: On both eyepiece sockets, +/- 5 diopters

Eyepieces: Wide field WF10X/20mm

Objective system: Zoom ratio 6:1

Lenses: 0.75X - 4.5X

Working distance: 100 mm

Tripod type: Column tripod without lighting

Headmount: For Ø25mm column and Ø76mm head

Focus: coarse focus with smoothness adjustment

Focusing travel: 43 mm

Dimensions LxWxH: 280x220x367 mm

Base plate: 280 x 220 mm

Tripod column / arm: Height 221 mm / Ø25 mm

Net weight: 3.4 kg

Scope of delivery: Dust cover

Contrast methods:

Bright field: Yes
